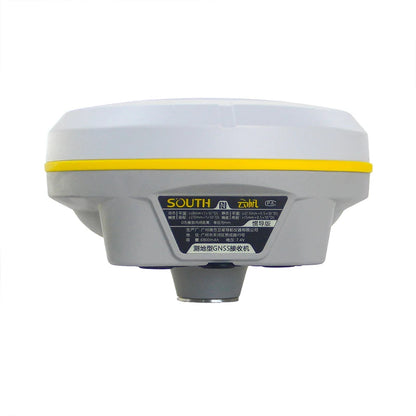

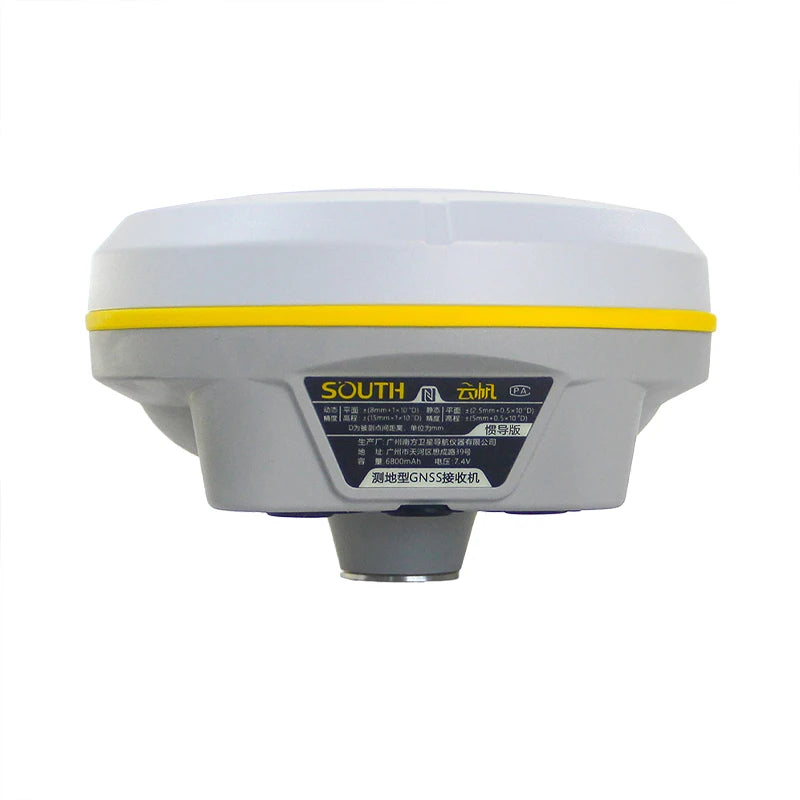

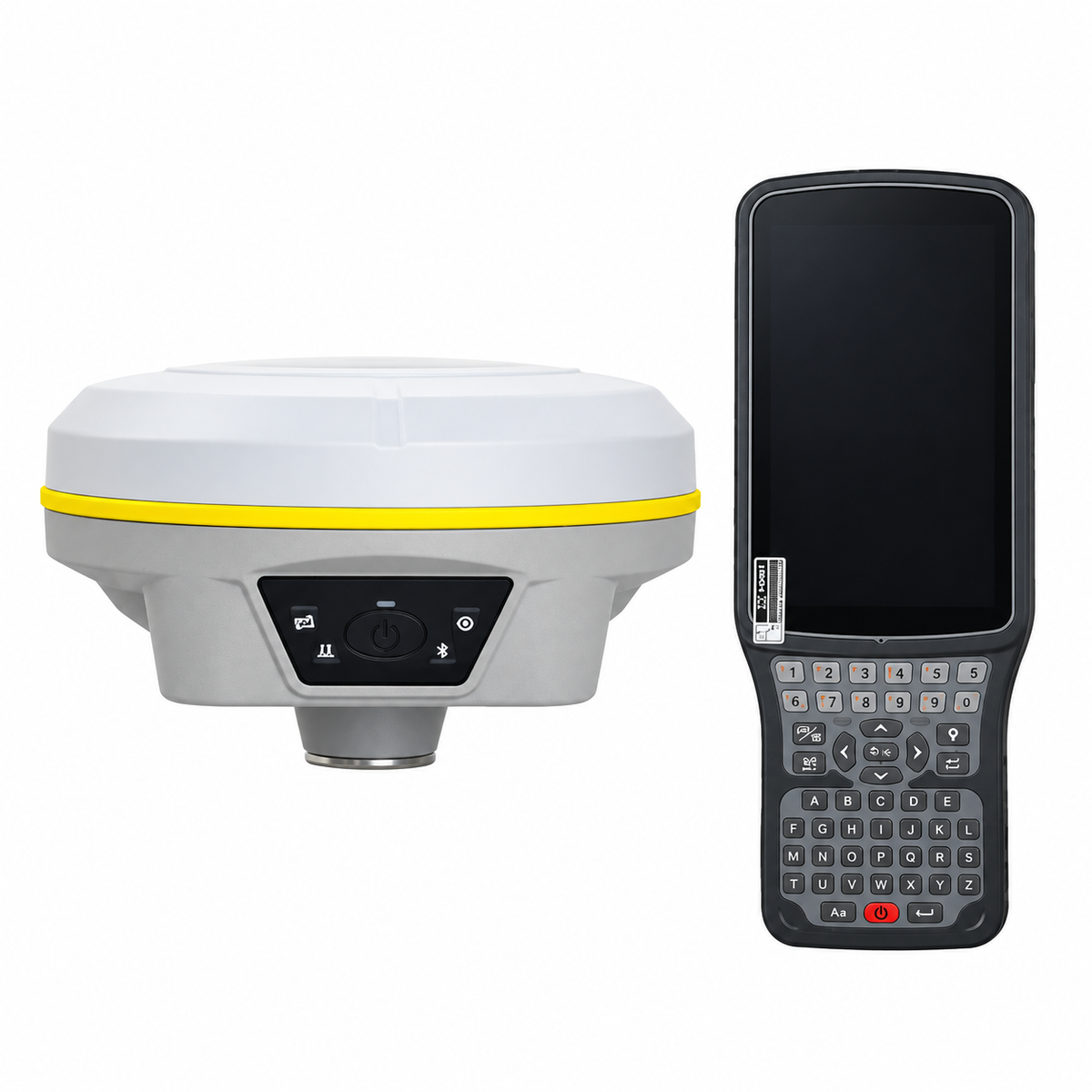

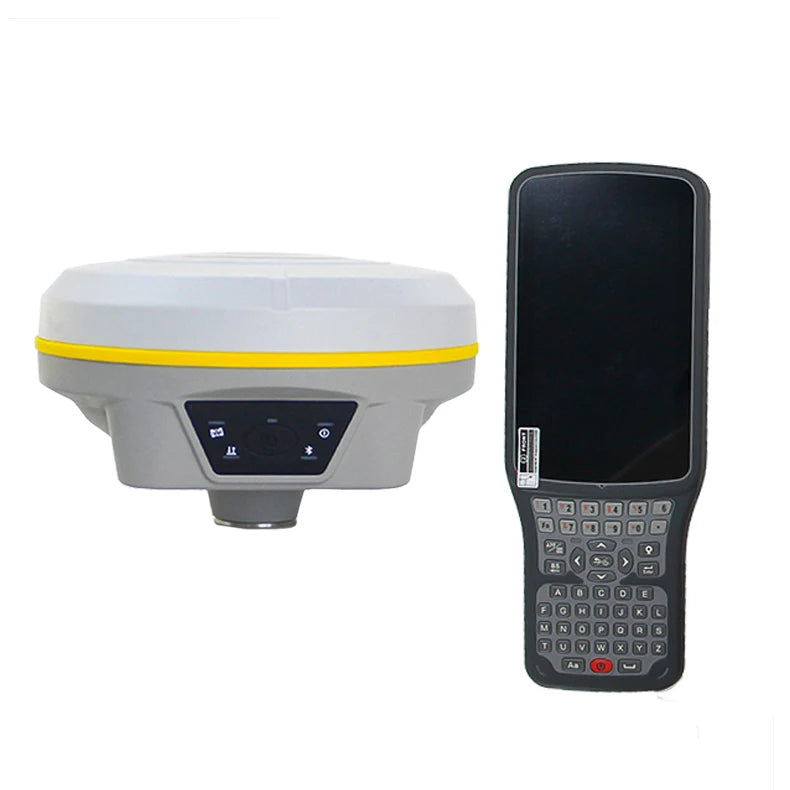

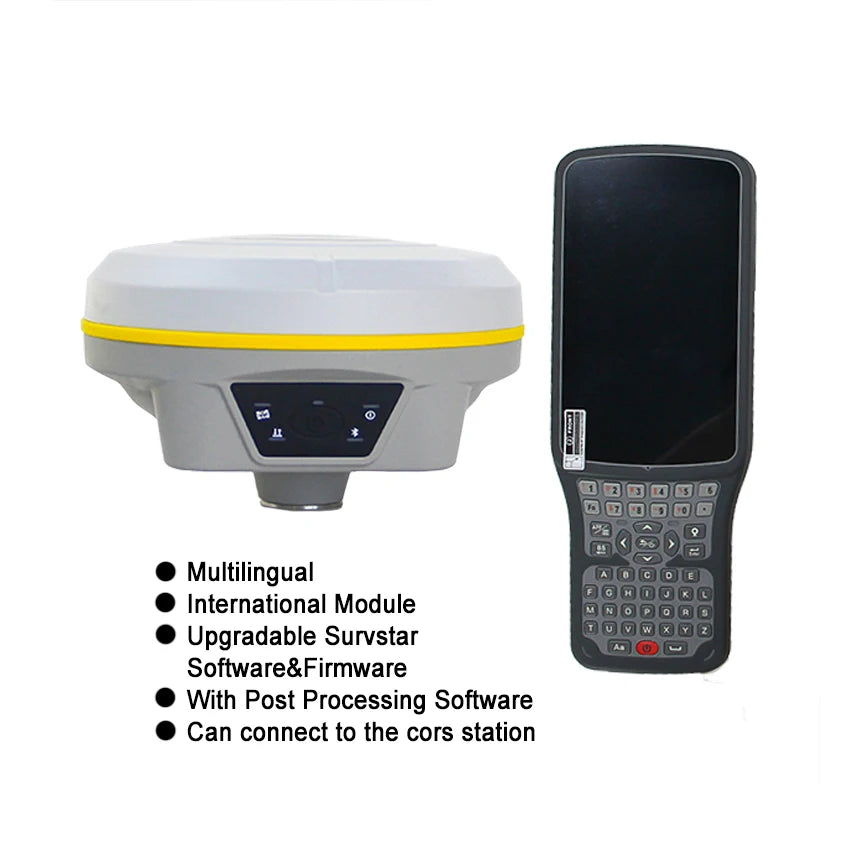

The SOUTH Galaxy G3 GNSS RTK Receiver is a high-performance surveying solution built for demanding professional positioning and field data-collection applications. With 1,598 GNSS channels, multi-constellation support, integrated IMU tilt compensation, internal UHF radio, and Wi-Fi/Bluetooth connectivity, it delivers reliable RTK positioning and efficient field operation. Its rugged IP68-rated magnesium-aluminum housing, extended battery life, and compatibility with upgradable SurvStar software make it well suited for surveying, construction, mapping, and infrastructure projects.
Couldn't load pickup availability
Product features
1,598 GNSS channels for multi-constellation signal tracking
Supports GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, and IRNSS
RTK positioning with horizontal accuracy down to 8 mm + 0.5 ppm RMS using NTRIP

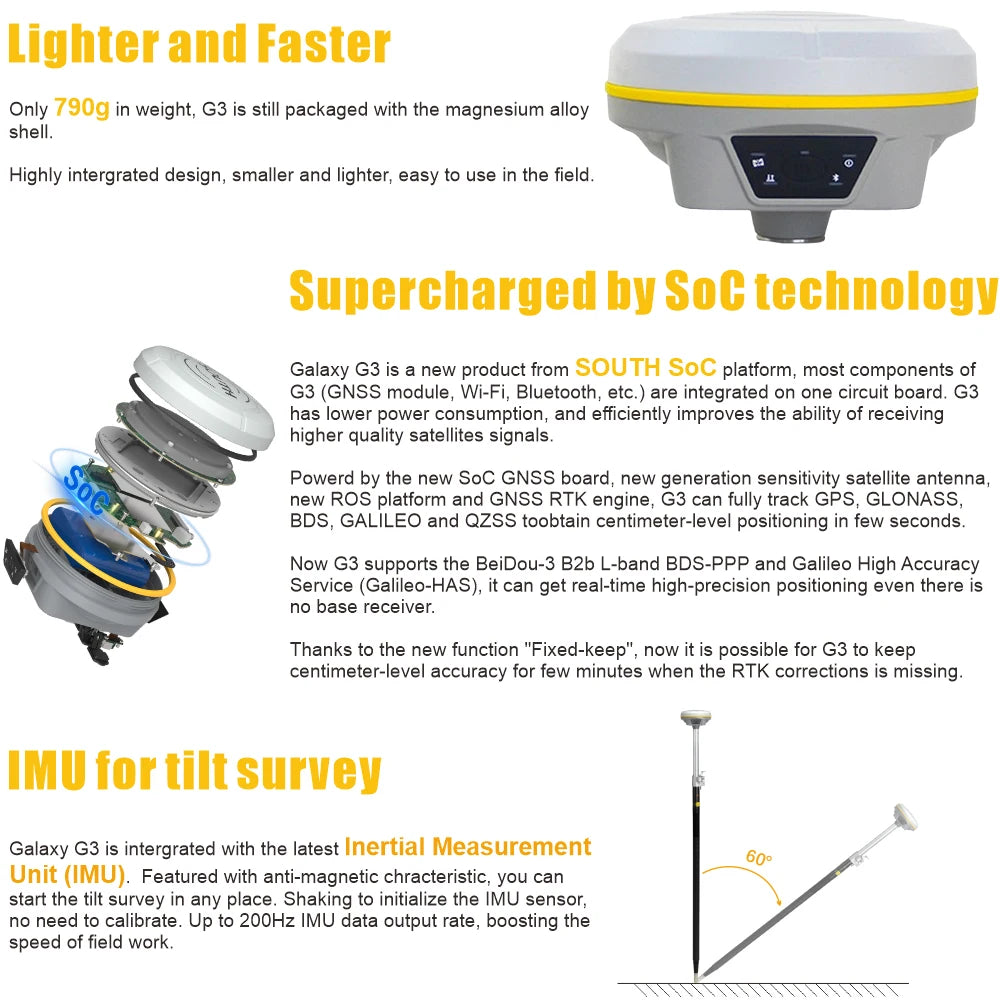

Integrated IMU with 0°–60° tilt compensation
RTK initialization time of approximately 2–8 seconds
Internal 2W UHF radio with receive/transmit, router, and repeater functions
UHF frequency range: 410–470 MHz
Typical communication range up to 8 km with Farlink protocol
Wi-Fi and Bluetooth connectivity
Supports NTRIP, VRS, FKP, and MAC network models
4GB internal SSD with automatic cycle storage
Supports USB external storage and FTP/HTTP data download

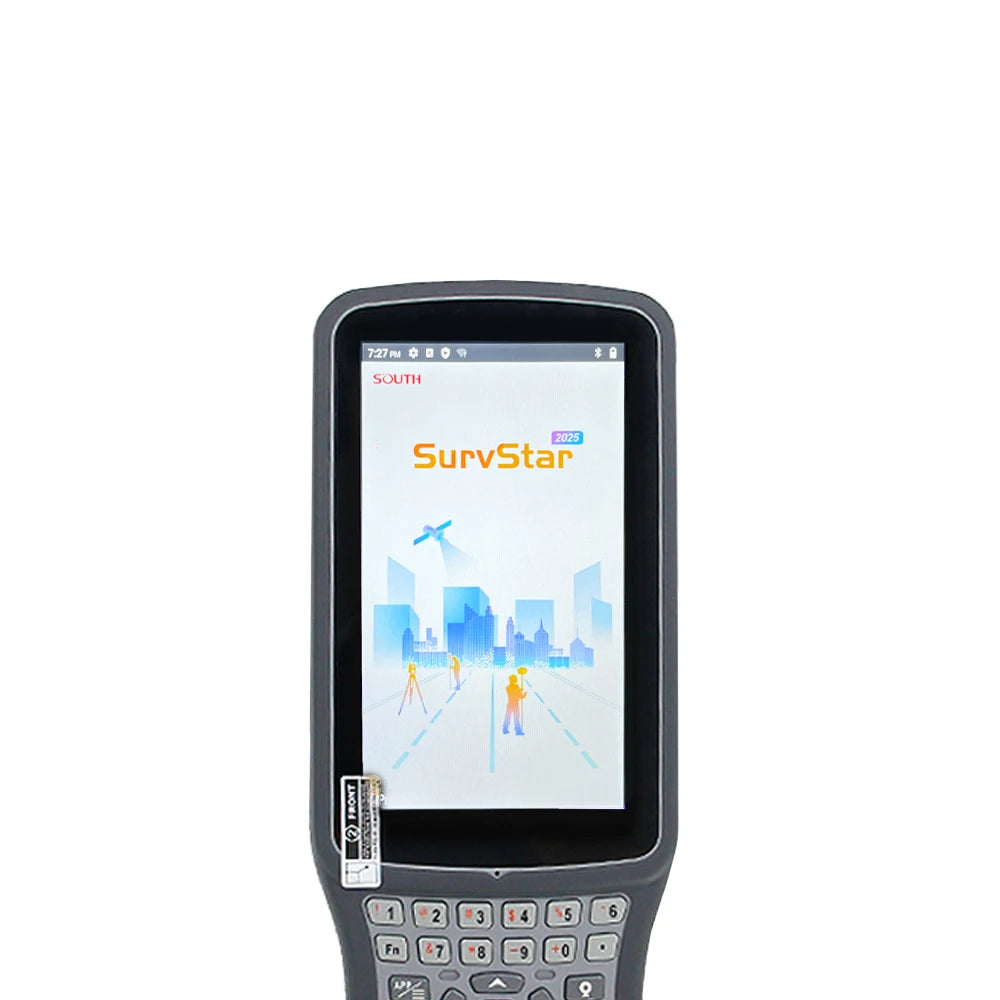

Compatible with SurvStar software and firmware upgrades
Built-in electronic bubble, IMU, and temperature sensors
IP68 protection against dust and water immersion
Operating temperature: -45°C to +75°C
15-hour battery life in Rover Bluetooth mode
Compact 790 g design with battery included
Supports multiple languages, including English and Spanish
Materials and care
Material: Magnesium-aluminum alloy housing designed for demanding field environments.
Protection: IP68-rated construction with resistance to dust and prolonged water immersion up to the specified conditions.
Care Instructions: Keep connectors, antenna interfaces, and charging ports clean and dry. Inspect the receiver and accessories regularly for physical damage.
Storage: Store in a dry, protected environment within the specified storage temperature range of -55°C to +85°C. Use the appropriate protective case during transportation.
