Main Description

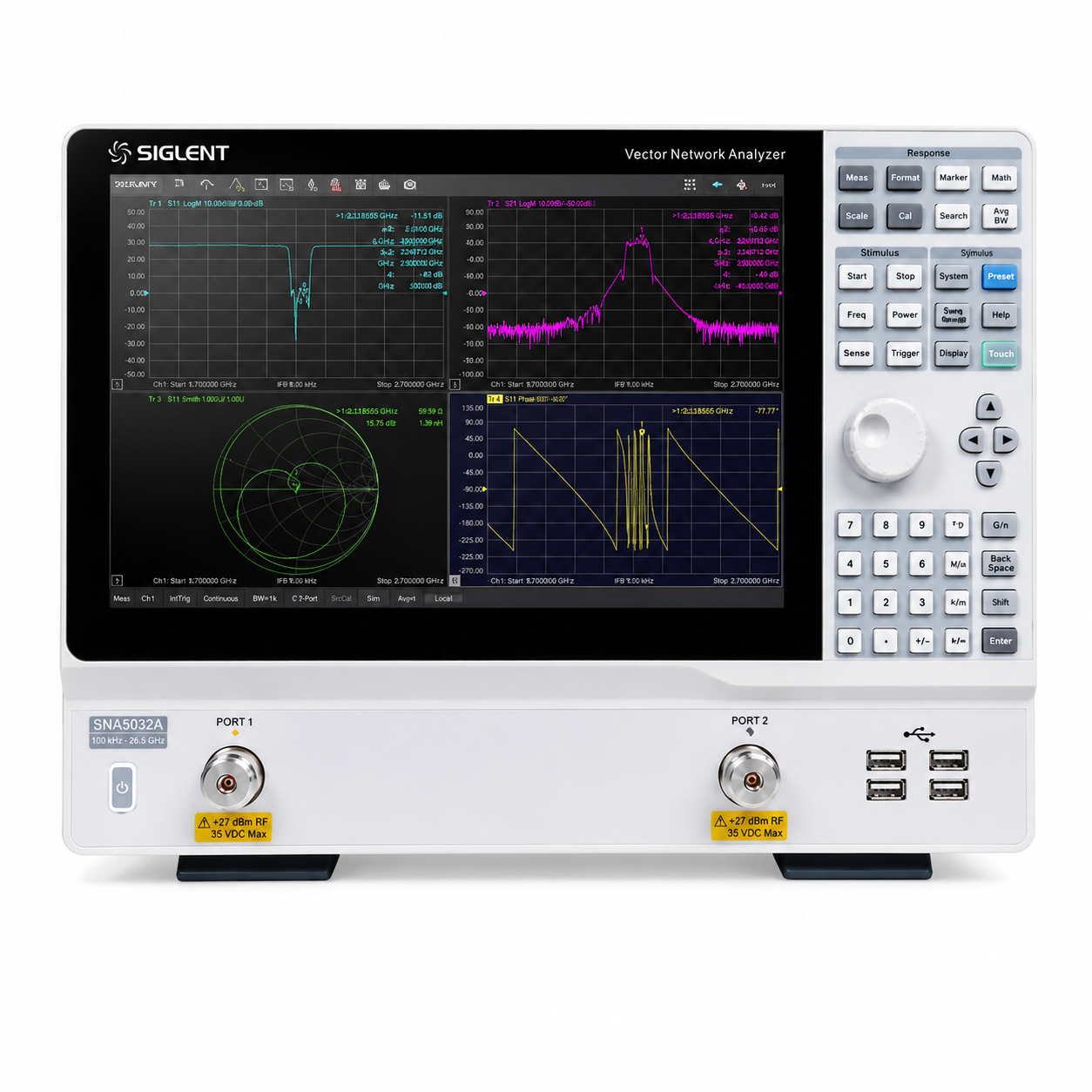

The SIGLENT SNA5000A Series Vector Network Analyzer is a high-performance RF test instrument designed for accurate characterization of passive and active components across a wide frequency range. Supporting models from 9 kHz up to 26.5 GHz, it delivers precise S-parameter measurements, time-domain analysis, impedance testing, and advanced calibration capabilities. Ideal for telecommunications, aerospace, defense, research laboratories, and RF manufacturing, the SNA5000A Series combines powerful measurement performance with an intuitive touchscreen interface for demanding engineering applications.
Couldn't load pickup availability
Product features
Available in multiple frequency ranges from 9 kHz to 26.5 GHz (model dependent).
High-performance 2-port and 4-port Vector Network Analyzer options.
Accurate S-parameter measurements (S11, S21, S12, S22).
Supports time-domain analysis (TDR) for cable and transmission line diagnostics.
Advanced impedance, return loss, insertion loss, and VSWR measurements.
Full one-port, two-port, and enhanced calibration functions for improved accuracy.
Wide dynamic range for precise RF component characterization.
Receiver and mixer measurement capabilities.
Built-in touch display with intuitive graphical interface.

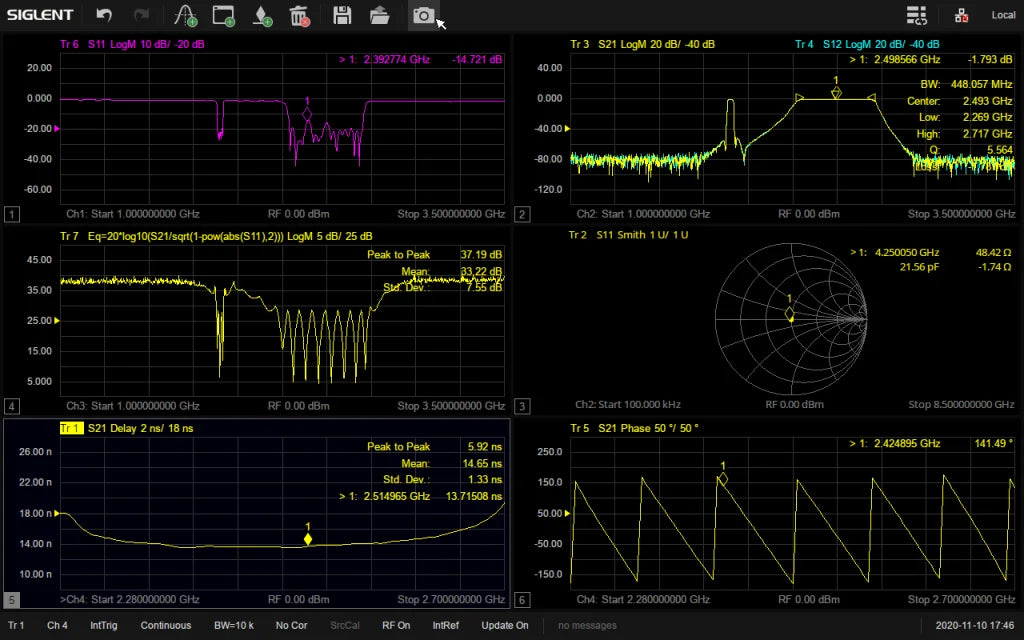

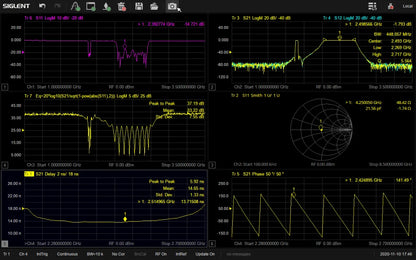

Multiple trace and multi-window display modes.

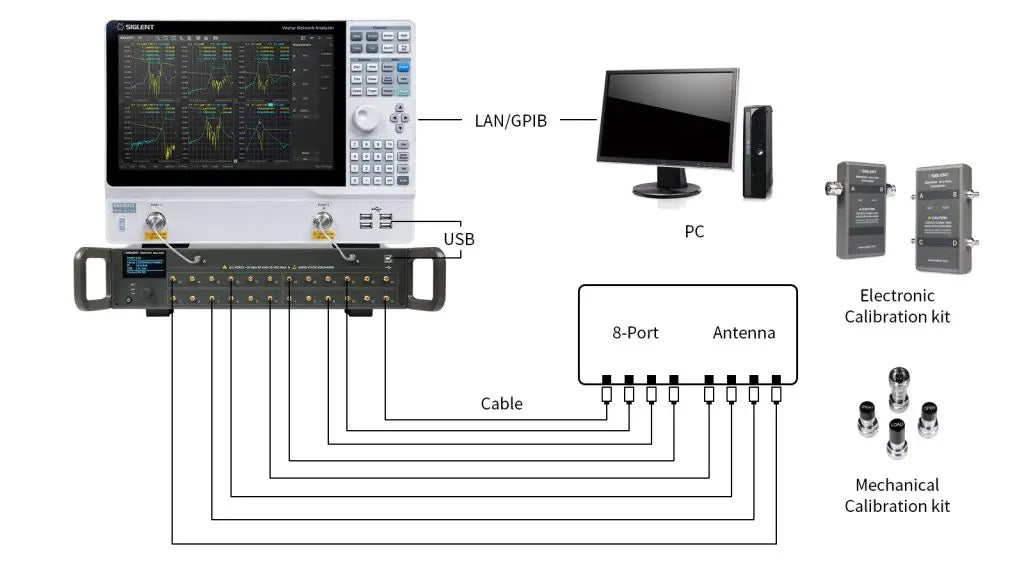

USB Host, USB Device, LAN, and remote control support.
SCPI-compatible remote programming for automated testing.
Ideal for antenna testing, RF filters, amplifiers, cables, connectors, and microwave components.
Designed for RF research, manufacturing, quality control, telecommunications, and laboratory environments.
Materials and care
Built with a rugged laboratory-grade enclosure for professional environments.
Operate in a clean, dry, and temperature-controlled workspace.
Protect RF connectors from dust, moisture, and mechanical damage by using protective caps when not in use.
Clean the exterior with a soft, dry, lint-free cloth; avoid abrasive cleaners and solvents.
Handle RF ports carefully to prevent connector wear or calibration errors.
Use only approved power accessories and recommended calibration kits.
Store in a protective carrying case or equipment rack when not in use.
Perform regular calibration and follow the manufacturer's maintenance recommendations to ensure long-term measurement accuracy and reliability.
