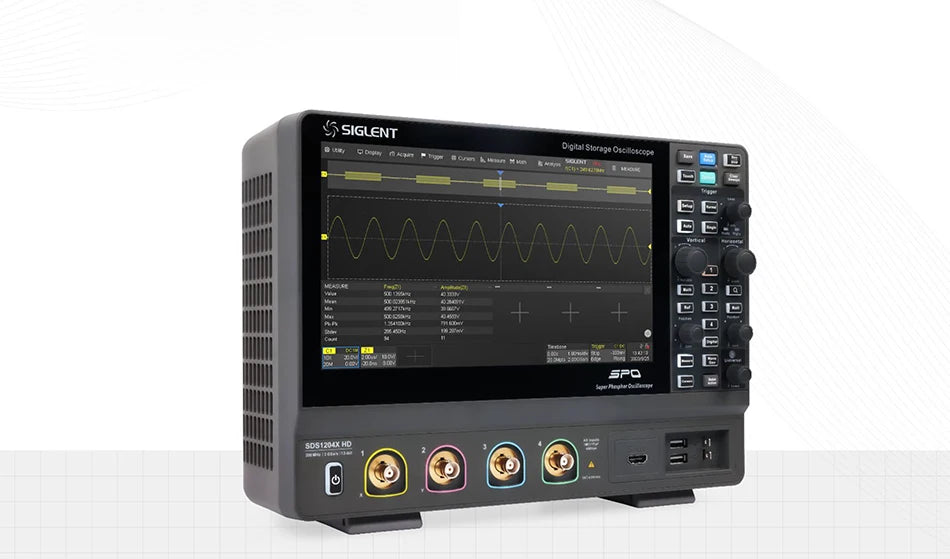

SIGLENT SDS1204X HD 4-Channel 200MHz Digital Storage Oscilloscope with 12-Bit Resolution
SIGLENT SDS1204X HD 4-Channel 200MHz Digital Storage Oscilloscope with 12-Bit Resolution
Regular price
$1,124.95 USD
Regular price
$1,293.95 USD
Sale price
$1,124.95 USD
Taxes included.
Shipping calculated at checkout.
100 in stock
The SIGLENT SDS1204X HD is a professional 4-channel digital storage oscilloscope engineered for high-precision electronic testing, research, and industrial diagnostics. Featuring 12-bit vertical resolution, 200 MHz bandwidth, and a 2 GSa/s real-time sampling rate, it delivers exceptional waveform accuracy and low-noise signal acquisition. Its large 10.1-inch capacitive touchscreen and advanced triggering, decoding, and analysis capabilities make it an ideal solution for engineers, laboratories, manufacturing, and R&D environments.
Couldn't load pickup availability
Product features
Product features
- 4 analog input channels for simultaneous multi-signal analysis.
200 MHz bandwidth for high-frequency signal capture.

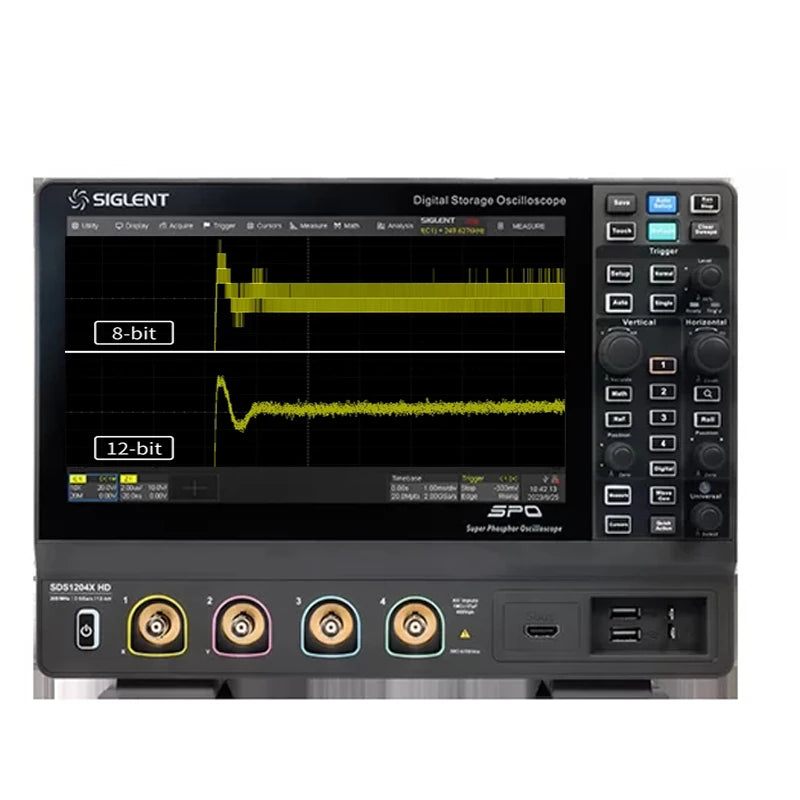

12-bit vertical resolution for enhanced waveform detail and measurement accuracy.
Real-time sampling rate up to 2 GSa/s.

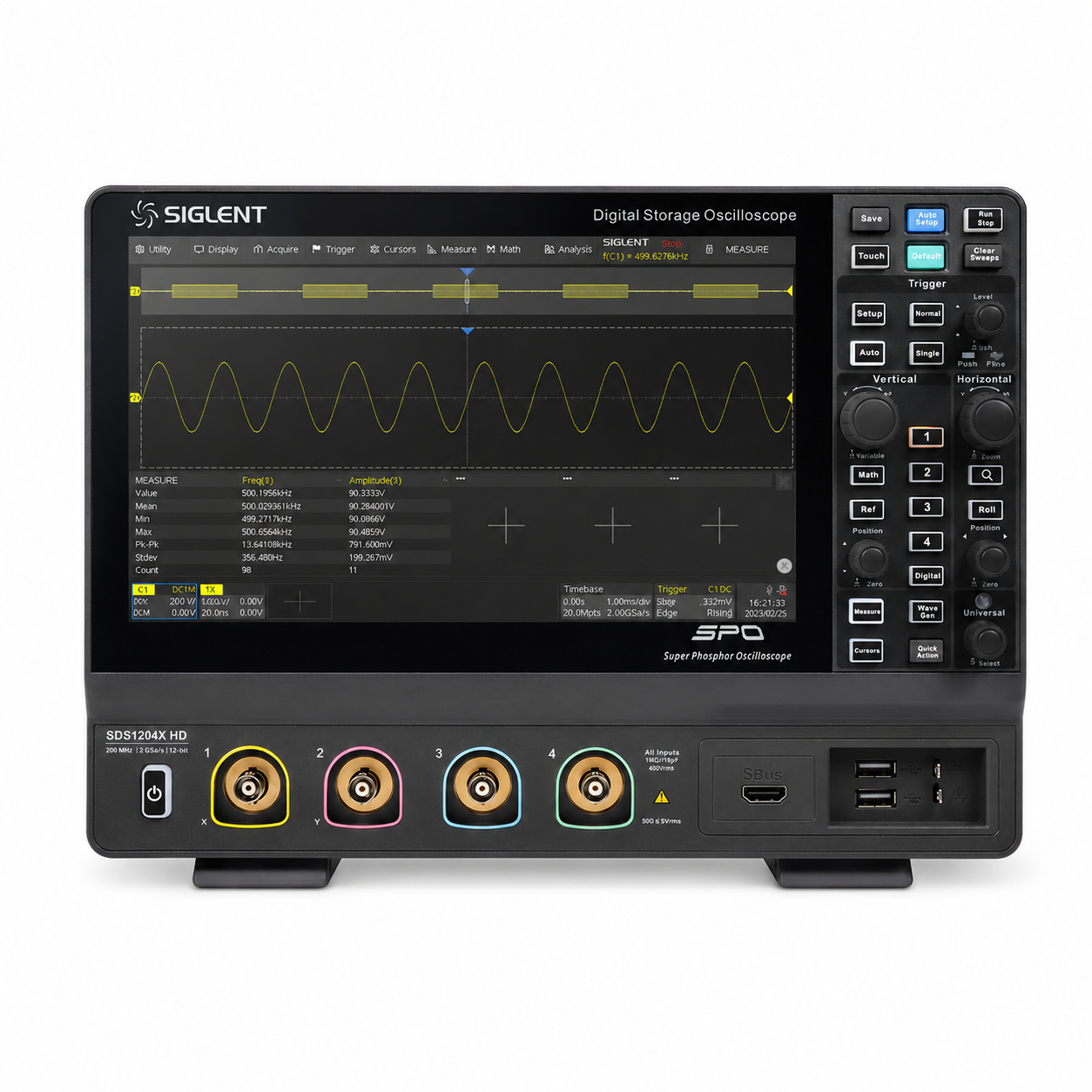

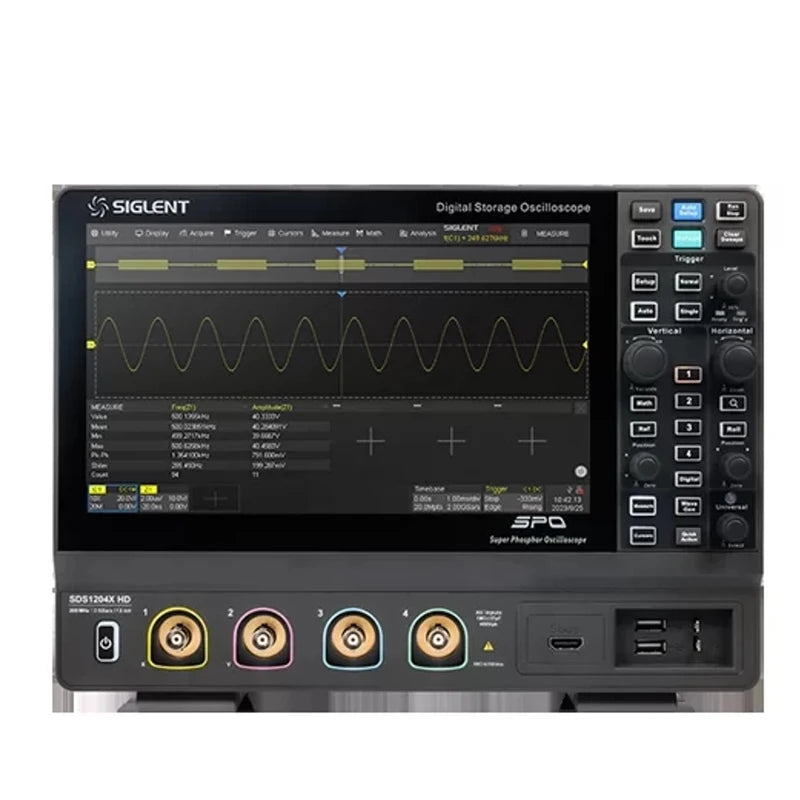

Large 10.1-inch high-resolution capacitive touchscreen.
High waveform capture rate for detecting infrequent signal anomalies.
Intelligent digital trigger system with multiple trigger modes.
Supports serial bus triggering and decoding (I²C, SPI, UART, CAN, LIN and more).
Automatic measurements on over 50 waveform parameters.
Advanced math functions including FFT, integration, differentiation, and formula editor.
History mode capable of recording up to 80,000 waveform frames.
Segmented memory acquisition for capturing complex trigger events.
Long record length for detailed waveform analysis.
Built-in histogram, trend, track, and statistical analysis tools.

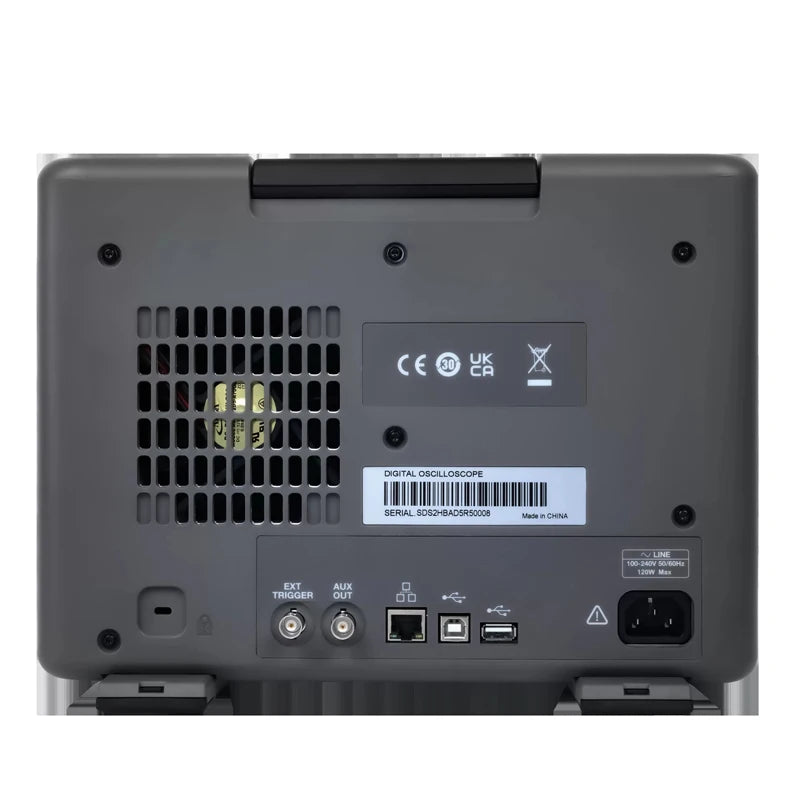

USB Host, USB Device, and LAN connectivity for remote operation and data transfer.
Compatible with external mouse, keyboard, and web browser remote control.
Includes 1-year manufacturer warranty.
Materials and care
Materials and care
- Durable industrial-grade enclosure designed for laboratory and field use.
Operate in a clean, dry environment away from excessive dust and moisture.
Avoid exposure to strong impacts, direct sunlight, or corrosive chemicals.
Clean the display and housing using a soft, lint-free cloth only.
Use only the recommended power supply and accessories.
Store in a protective case or dust-free environment when not in use.
Periodically inspect probes, connectors, and cables for wear or damage.
Follow the user manual for proper calibration and maintenance to ensure long-term measurement accuracy.
