Portable Multi-Channel Digital Eddy Current Flaw Detector for Surface & Near-Surface Inspection
Portable Multi-Channel Digital Eddy Current Flaw Detector for Surface & Near-Surface Inspection
Regular price
$7,049.95 USD
Regular price
$8,107.95 USD
Sale price
$7,049.95 USD
Taxes included.
Shipping calculated at checkout.
9999 in stock

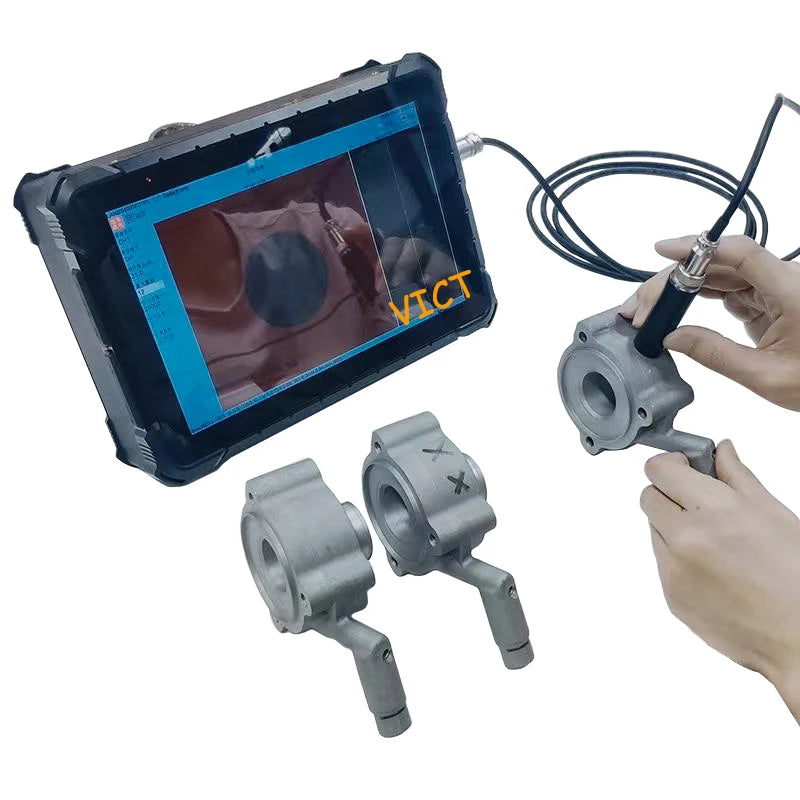

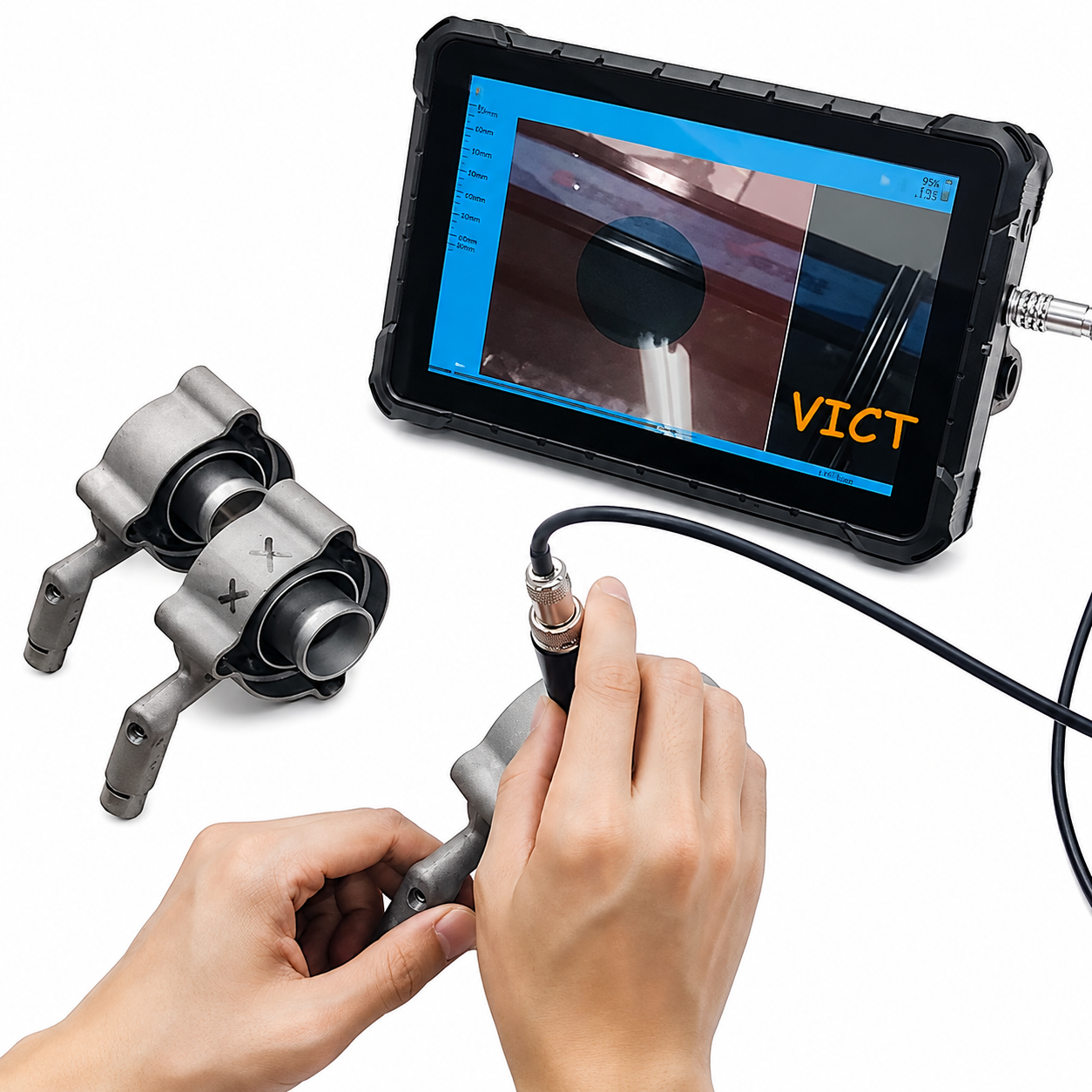

The Portable Multi-Channel Digital Eddy Current Flaw Detector is a professional non-destructive testing (NDT) system designed to detect surface and near-surface defects in conductive materials. Featuring support for 1–8 inspection channels, a 10.1-inch capacitive touchscreen, and advanced digital signal processing, this high-performance instrument delivers fast, accurate flaw detection for Oil & Gas, aerospace, power generation, automotive, and industrial manufacturing applications.
Couldn't load pickup availability
Product features
Product features
- Multi-channel eddy current inspection with 1–8 expandable detection channels

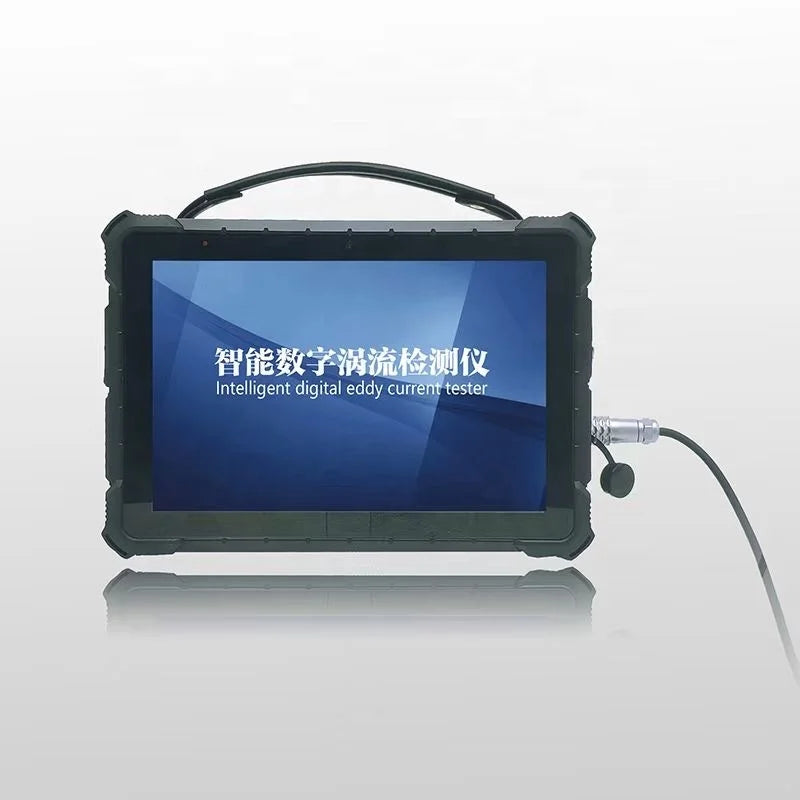

Large 10.1-inch capacitive full-color touchscreen
Frequency range: 5 Hz–12 MHz, continuously adjustable
Gain range: 0–99 dB with 0.1 dB adjustment steps
Independent X/Y gain ratio adjustment for enhanced signal analysis
Signal-to-noise ratio (SNR): ≥10 dB (up to 30 dB)
Adjustable probe excitation with 16 drive levels
Supports Differential (DP), Absolute (DI), and custom probes
Fast digital balancing for quick setup
Advanced digital filtering (Low-Pass & High-Pass) to reduce electrical interference
Multiple display modes including Impedance Plane, Time Base, A/B Scan, 8-Frequency Sorting, and optional 3D Analog Display
Intelligent alarm system with customizable alarm windows, pre-alarm, and real-time software/hardware alerts
Continuous operation battery life of more than 6 hours

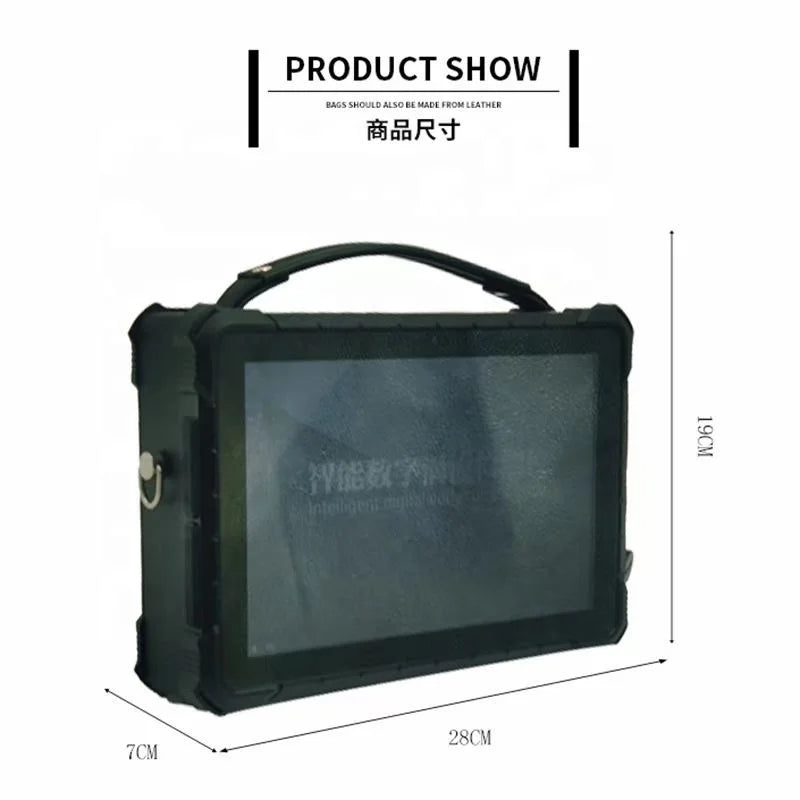

Compact portable design weighing less than 2.5 kg
Ideal for weld inspection, heat exchanger tubes, pipelines, aircraft components, pressure vessels, and precision manufacturing.
Materials and care
Materials and care
- Housing: Rugged industrial-grade enclosure designed for field use
Clean the touchscreen and probe connectors after each inspection.

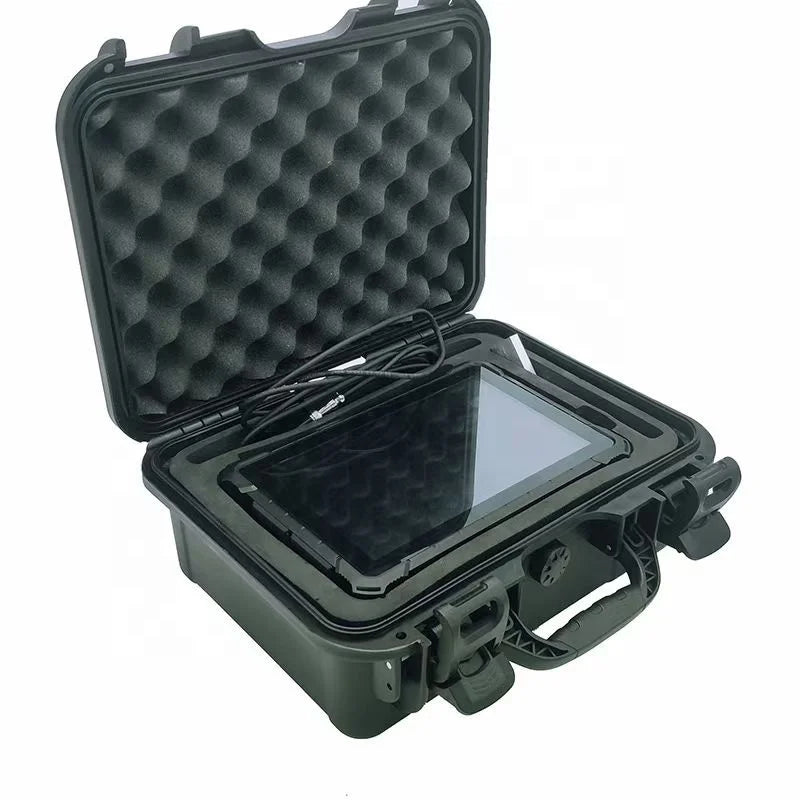

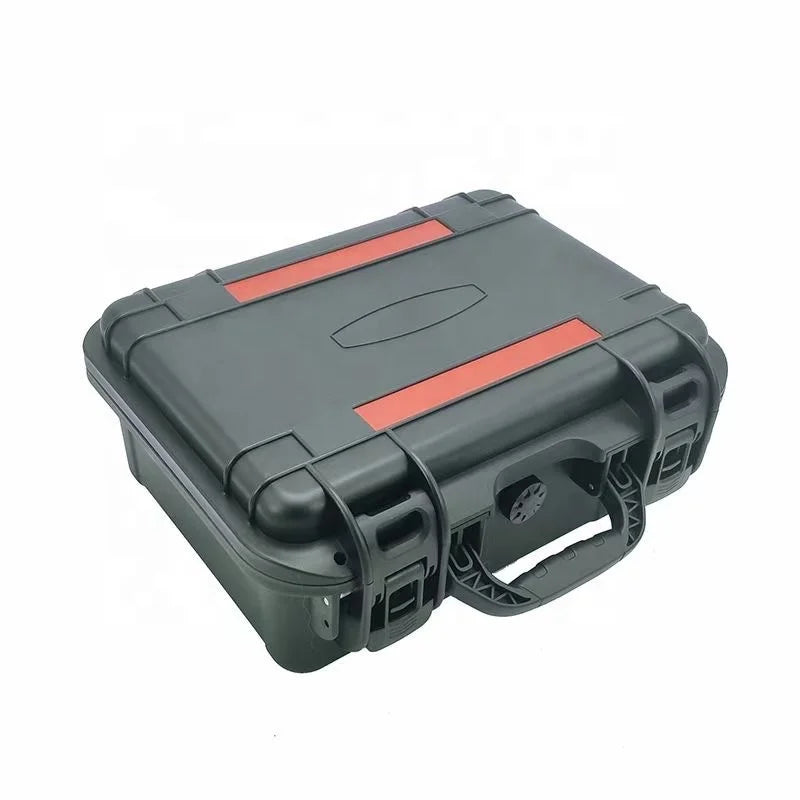

Store the instrument in its protective carrying case when not in use.
Avoid excessive impacts, moisture, and extreme temperatures.
Recharge the battery before extended field inspections.
Periodically verify calibration and probe performance to maintain measurement accuracy.
Operating temperature: 0°C to +45°C (storage: -20°C to +50°C).
