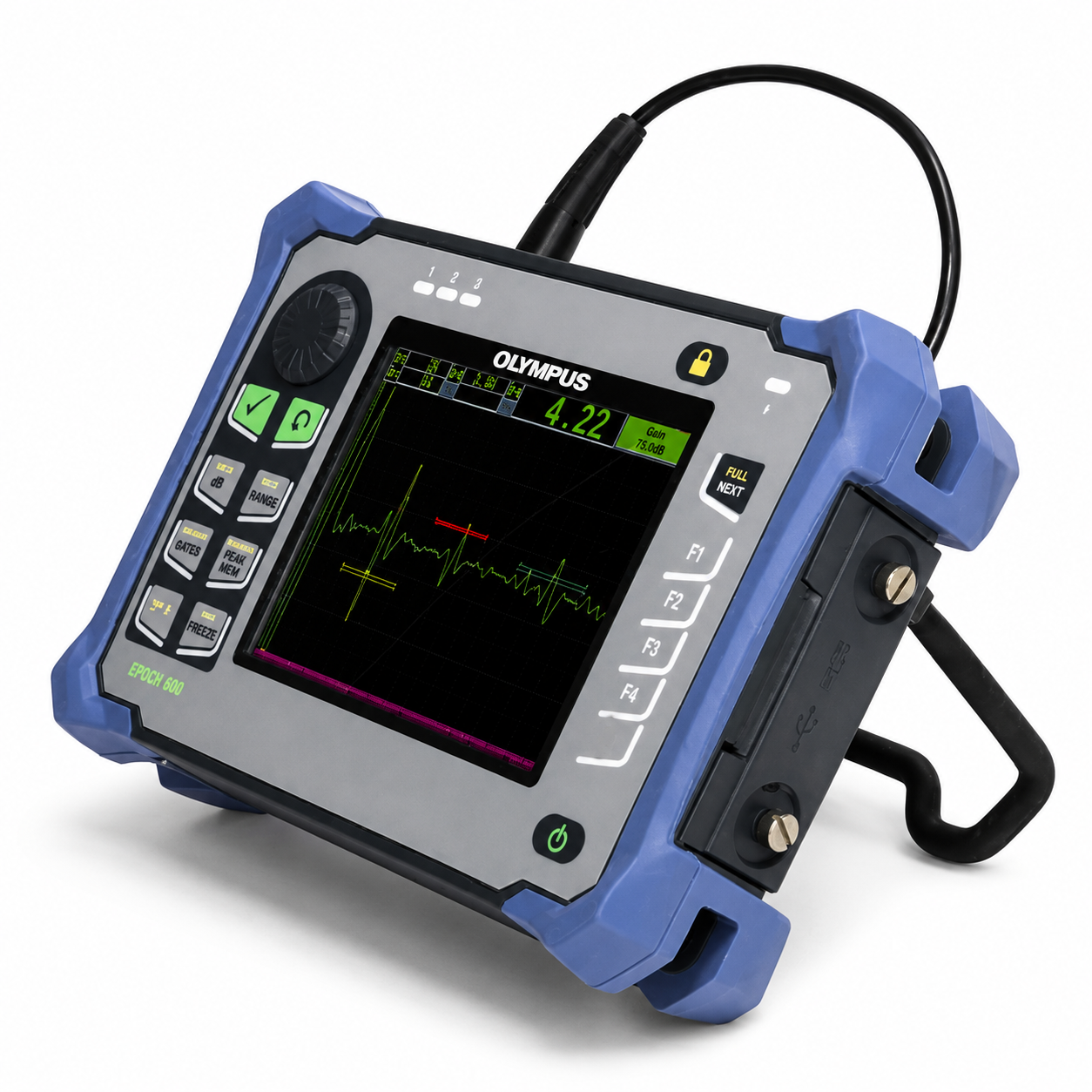

The Olympus EPOCH 600 is a professional portable ultrasonic flaw detector engineered for fast, accurate, and reliable non-destructive testing (NDT). Designed to meet EN12668-1 requirements, it combines advanced ultrasonic inspection capabilities with a rugged, ergonomic design suitable for field inspections, manufacturing, oil & gas, aerospace, power generation, and industrial maintenance. It features a high-visibility Full VGA display, a high dynamic range digital receiver, and an adjustable square wave pulser for exceptional flaw detection performance.
Couldn't load pickup availability
Product features
Designed in compliance with EN12668-1 inspection standards.
Adjustable PerfectSquare™ square wave pulse generator for improved inspection performance.
High dynamic range digital receiver with 8 digital filter settings for enhanced signal-to-noise ratio.
Sunlight-readable 640 × 480 Full VGA transflective color LCD.
Fast inspection with pulse repetition frequency up to 2 kHz.
Supports DAC/TVG and DGS/AVG evaluation methods.
Automatic calibration for sound velocity, zero offset, thickness, and angle beam measurements.
Measurement range from 1 mm to 10,160 mm (material dependent).
Adjustable gain from 0 to 110 dB.
Rechargeable lithium-ion battery providing approximately 12–13 hours of operation.
2 GB MicroSD storage for inspection data.
USB OTG communication, VGA output, and alarm output.
Available with BNC or LEMO transducer connections.
Rugged ergonomic housing designed for demanding field environments.
Materials and care
Store in a clean, dry environment when not in use.
Clean the display using a soft microfiber cloth.
Protect probe connectors from dust and moisture.
Recharge the lithium-ion battery before long-term storage.
Perform routine calibration to maintain measurement accuracy.
Transport the instrument in a protective carrying case to prevent impact damage.
