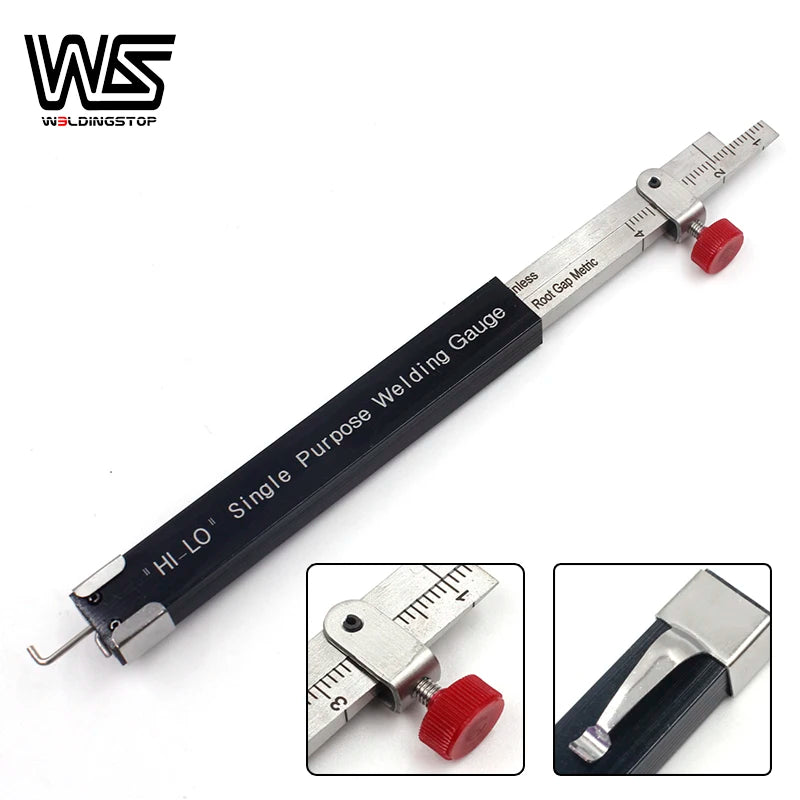

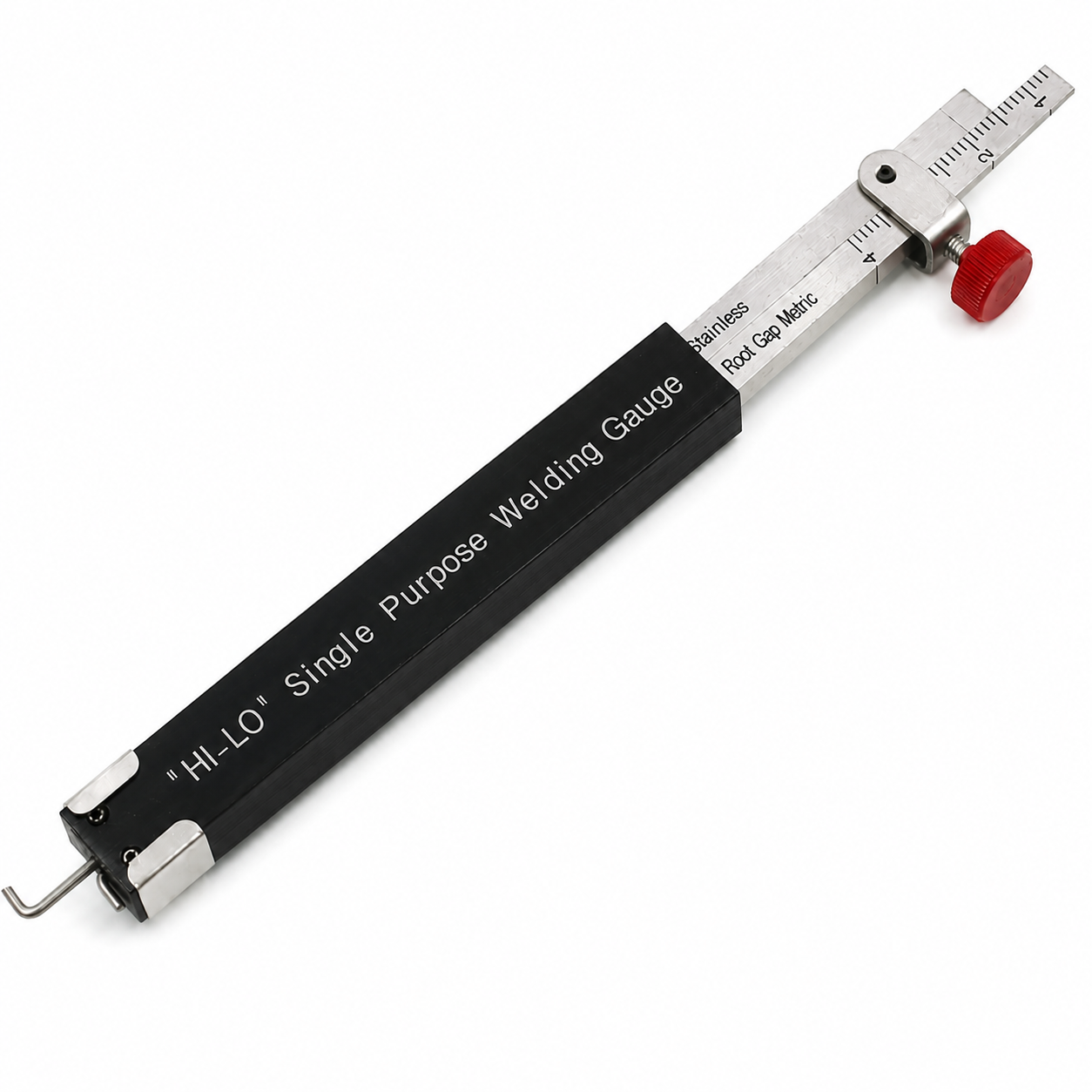

Internal Hi-Lo Welding Gauge – Precision Pipe Alignment & Fit-Up Inspection Tool

• Precision internal Hi-Lo alignment gauge for pipe fit-up inspection.

•
  Measures internal misalignment and root gap before welding.

•
  Designed for pipeline, pressure vessel, structural steel, and fabrication applications.

•
  High-quality stainless steel construction for corrosion resistance and long service life.

•
  Laser-engraved metric scale for clear, permanent markings.

•

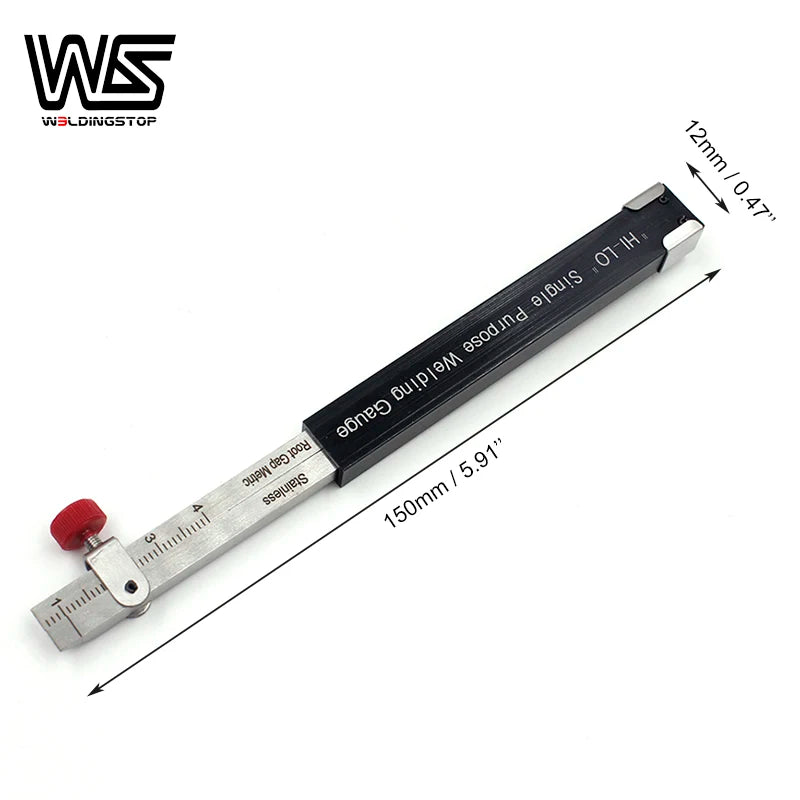

  Compact lightweight design for convenient field use.

•

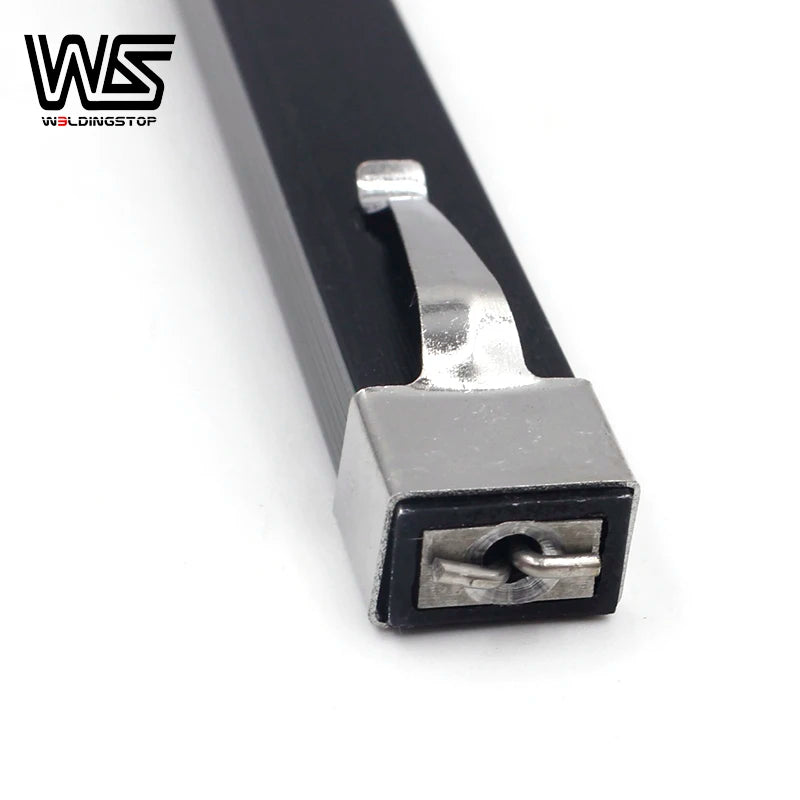

  Integrated pocket/belt clip for easy carrying.

•

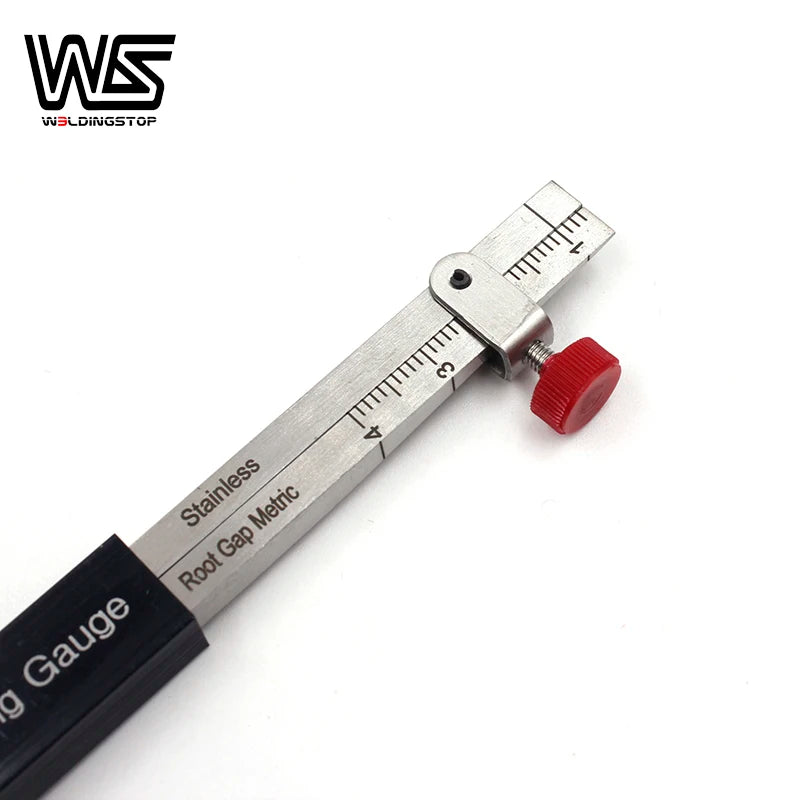

  Retaining screw securely locks measurements for accurate readings.

•

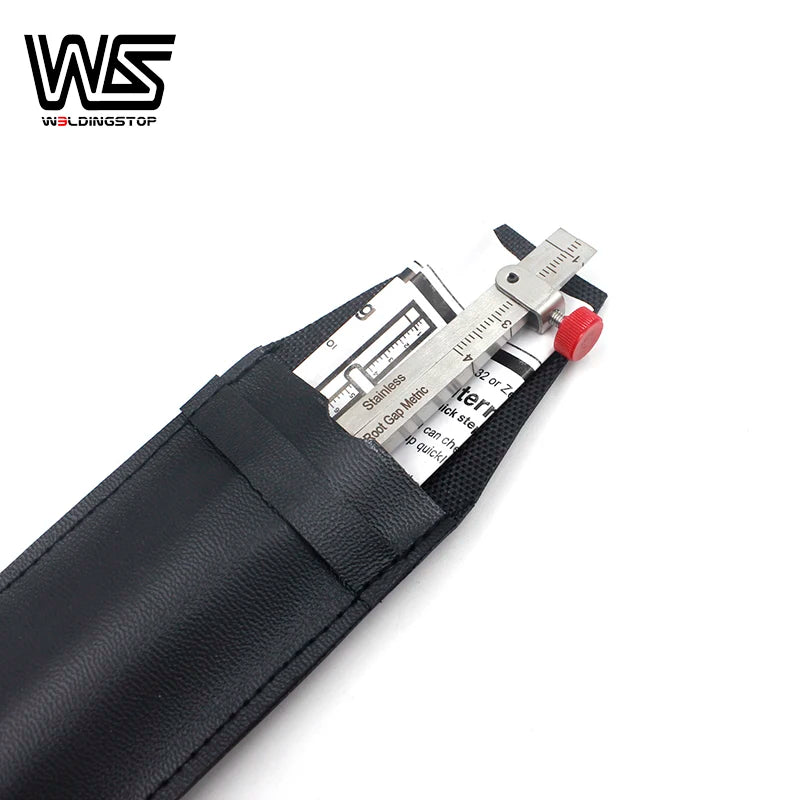

  Includes protective PU leather storage pouch.

•
  Suitable for welding inspectors, pipefitters, fabricators, and QA/QC professionals.


Manufactured from premium stainless steel for durability and corrosion resistance.

Precision laser-engraved measurement scale resists wear over time.

Wipe clean with a soft dry cloth after each use.

Keep the measuring surfaces free from dirt, oil, and welding debris.

Store in the included protective PU pouch when not in use.

Avoid dropping or exposing the gauge to excessive impact to maintain measurement accuracy.

Periodically inspect the retaining screw and moving components for smooth operation.
