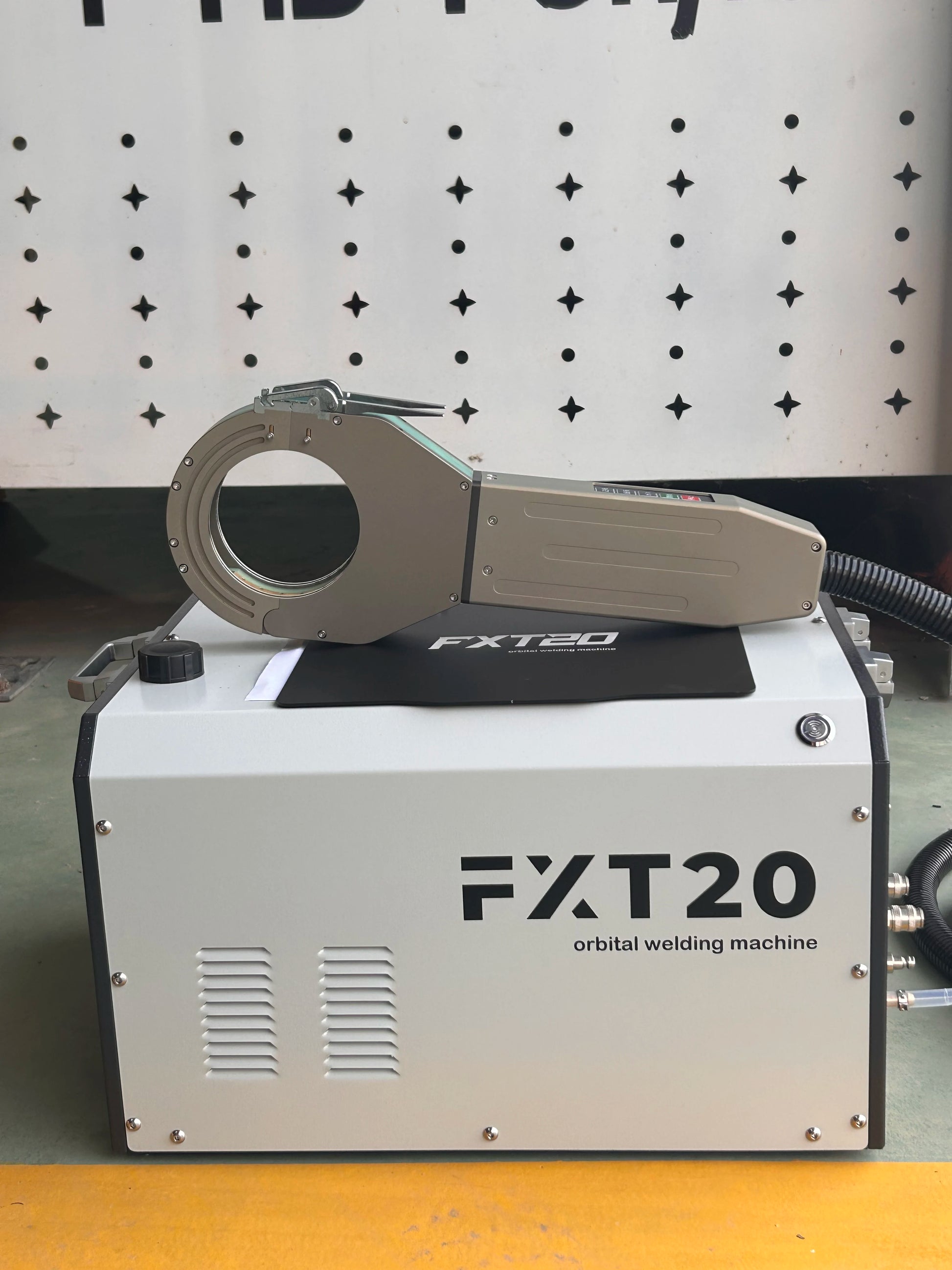

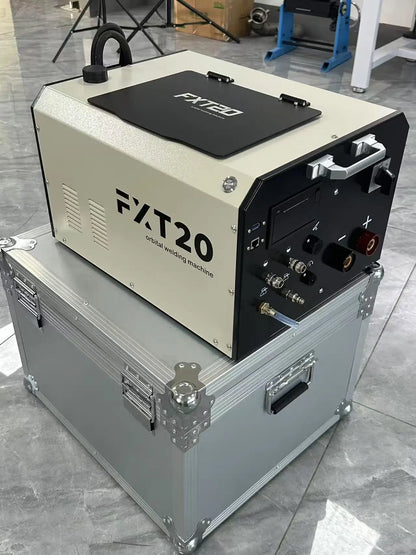

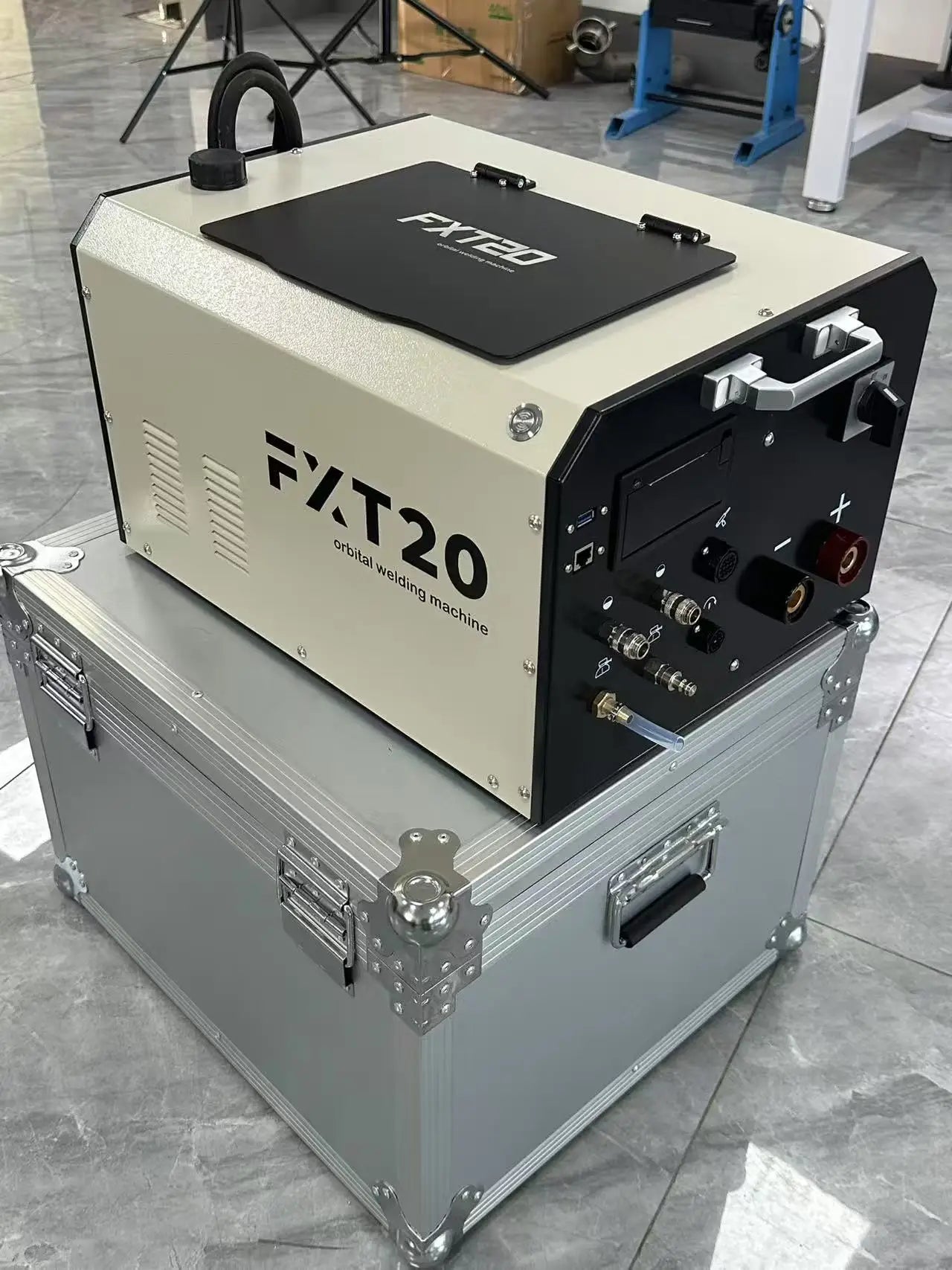

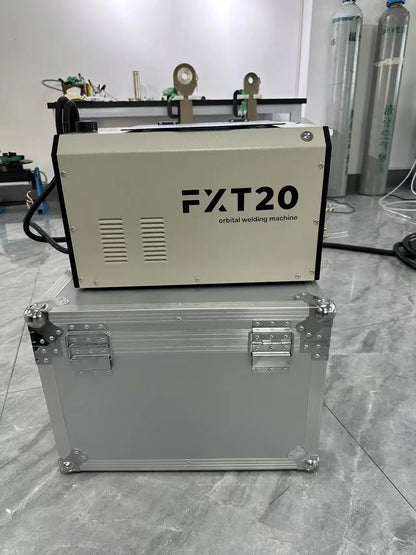

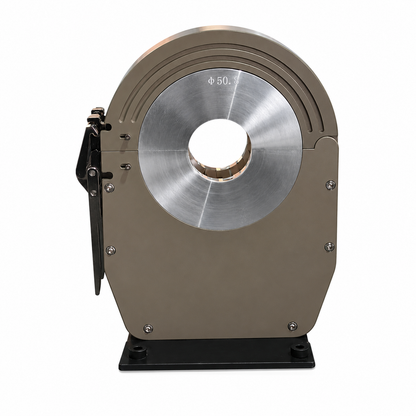

Industrial Orbital TIG Welding Machine – Automatic Water-Cooled Tube & Pipe Welder

• Digital programmable orbital TIG welding power source

•

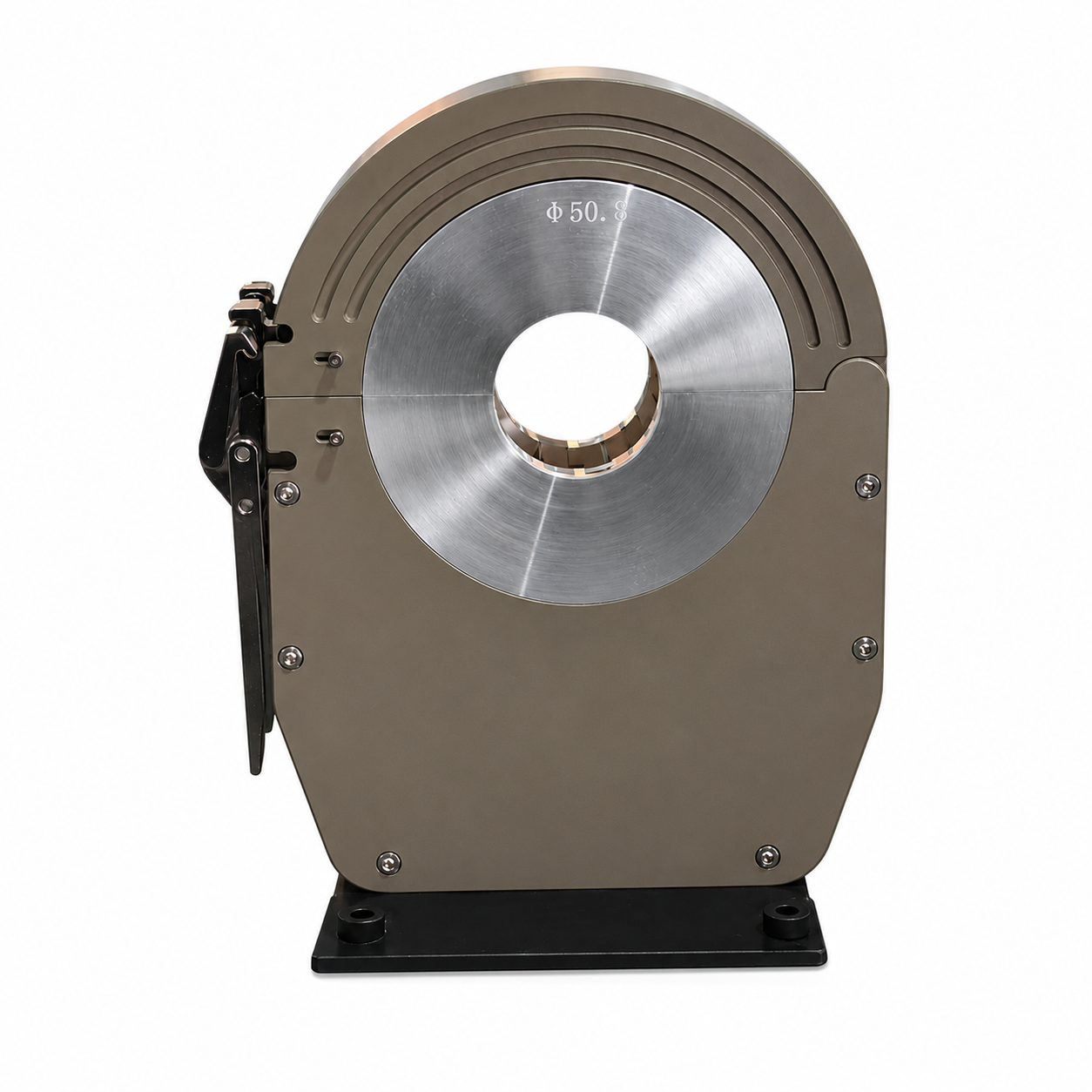

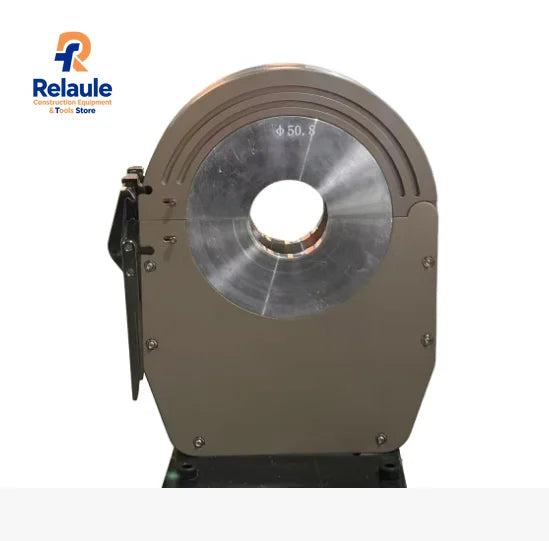

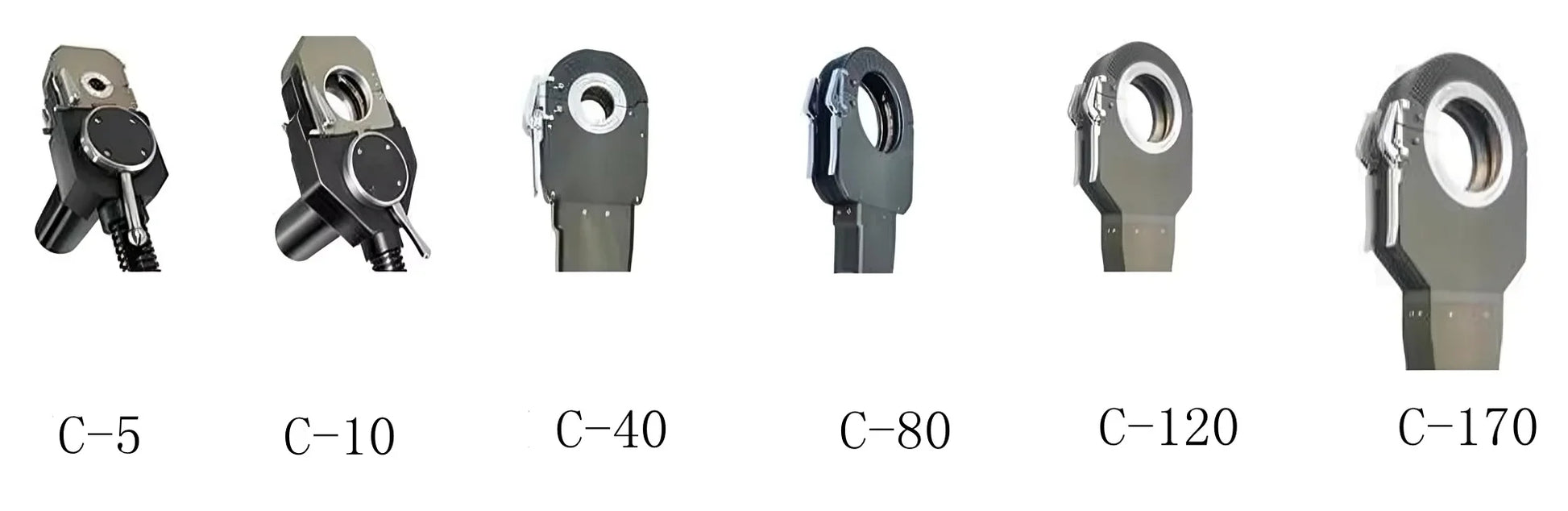

  Compatible with closed orbital welding heads (C5–C170)

•
  Welds pipe diameters from 3.175 mm to 165.2 mm

•
  Suitable for wall thicknesses from 0.5 mm to 3.0 mm

•

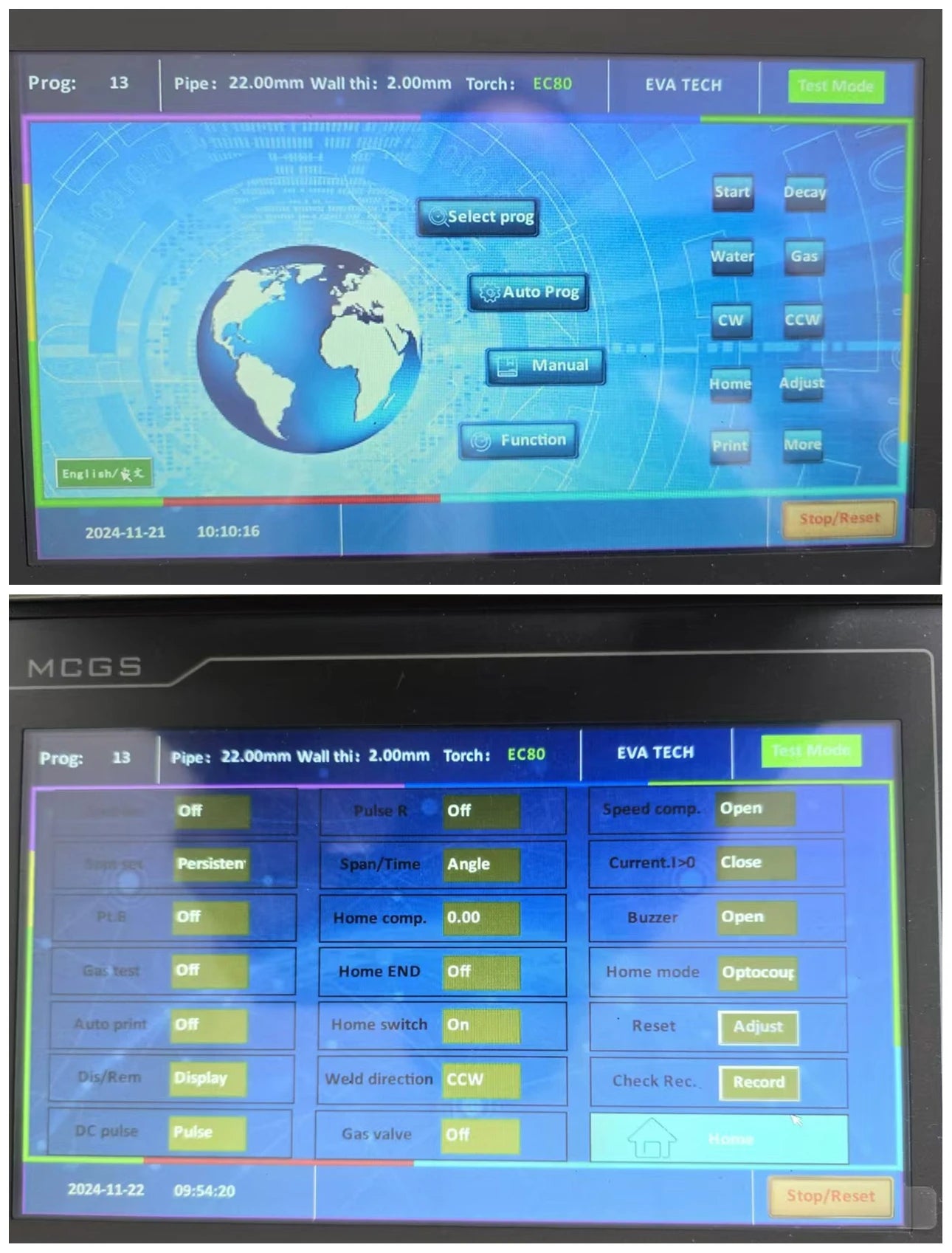

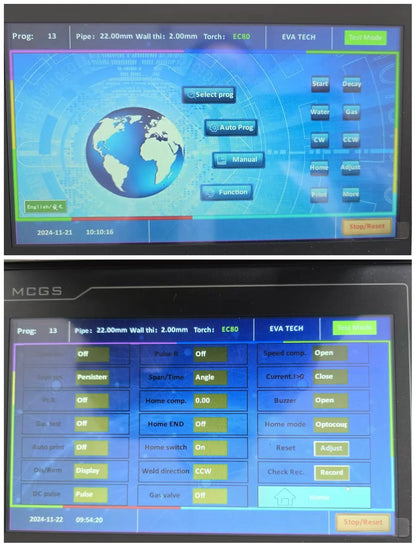

  10-inch color touchscreen with intuitive user interface

•
  Automatic and manual welding parameter programming

•
  Stores up to 200 welding procedures

•
  PLC-controlled system for precise process management

•
  Output current range: 5–200 A DC

•
  Water-cooled welding system for continuous operation

•
  Supports argon shielding gas

•
  Built-in safety protections including overload, over-voltage, leakage, arc failure, and tungsten short-circuit detection

•

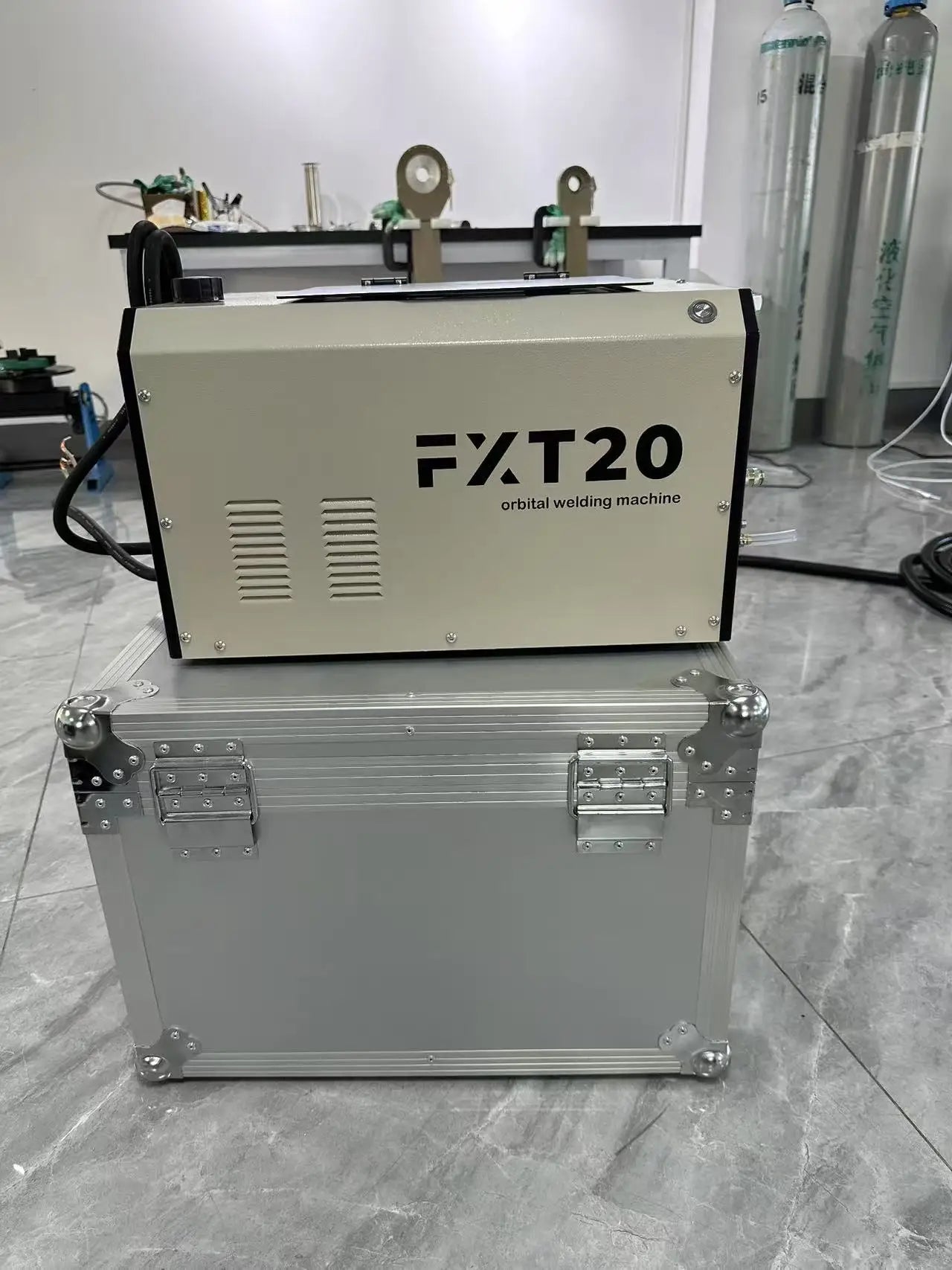

  Compact integrated design for workshop and field applications

•
  Ideal for high-purity and critical process piping

•

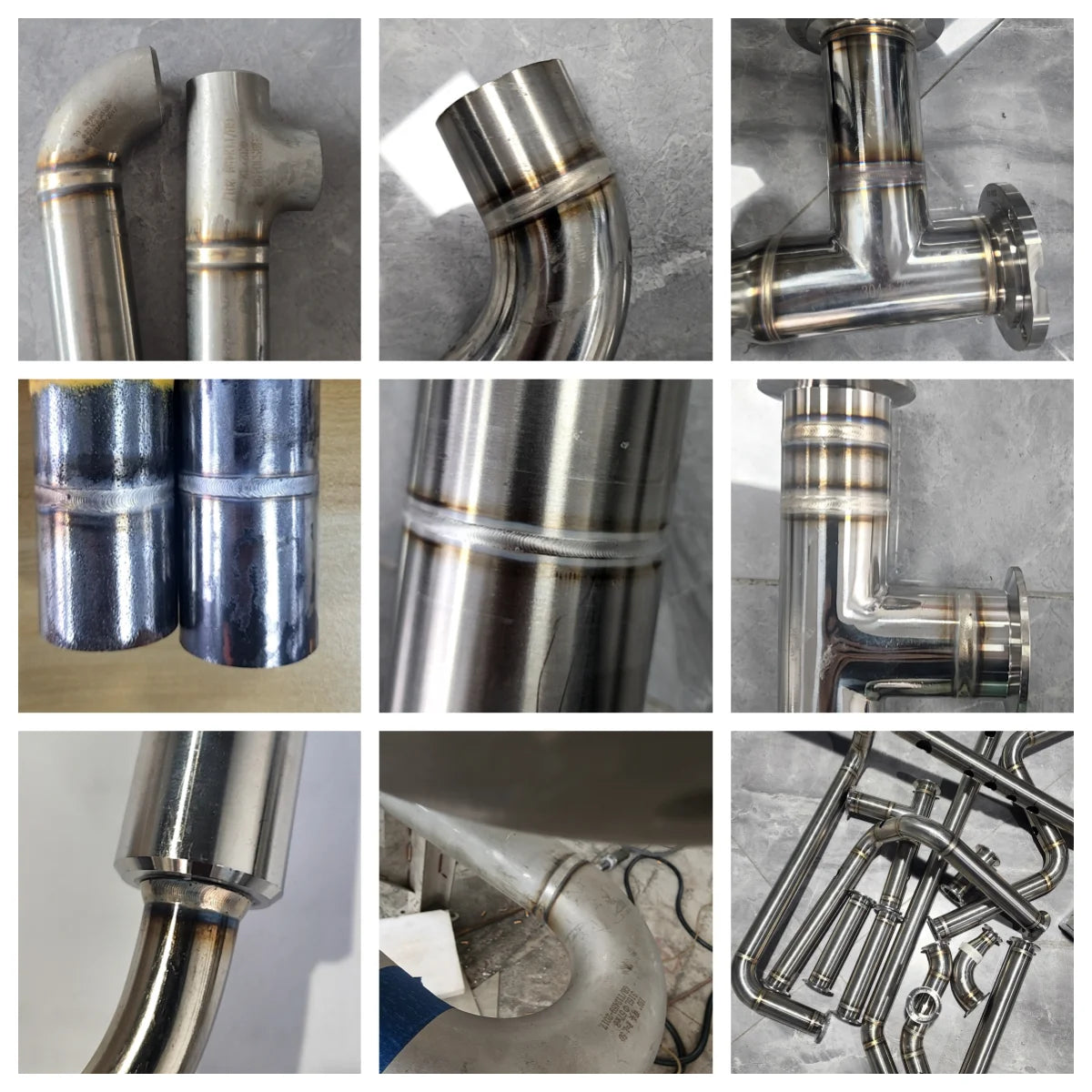

  Designed for stainless steel, carbon steel, titanium alloy, and similar materials

•
  Suitable for Oil & Gas, petrochemical, pharmaceutical, semiconductor, food & beverage, and process piping industries

Designed for welding stainless steel, carbon steel, titanium alloy, and compatible metal tubing

Operate using clean argon shielding gas for optimal weld quality

Ensure the water-cooling system is properly filled and maintained before operation

Regularly inspect the welding head, tungsten electrode, cables, and cooling lines for wear

Clean the equipment after use to remove dust and metal particles

Store in a clean, dry environment when not in operation

Follow recommended maintenance schedules to ensure long-term performance and welding accuracy
