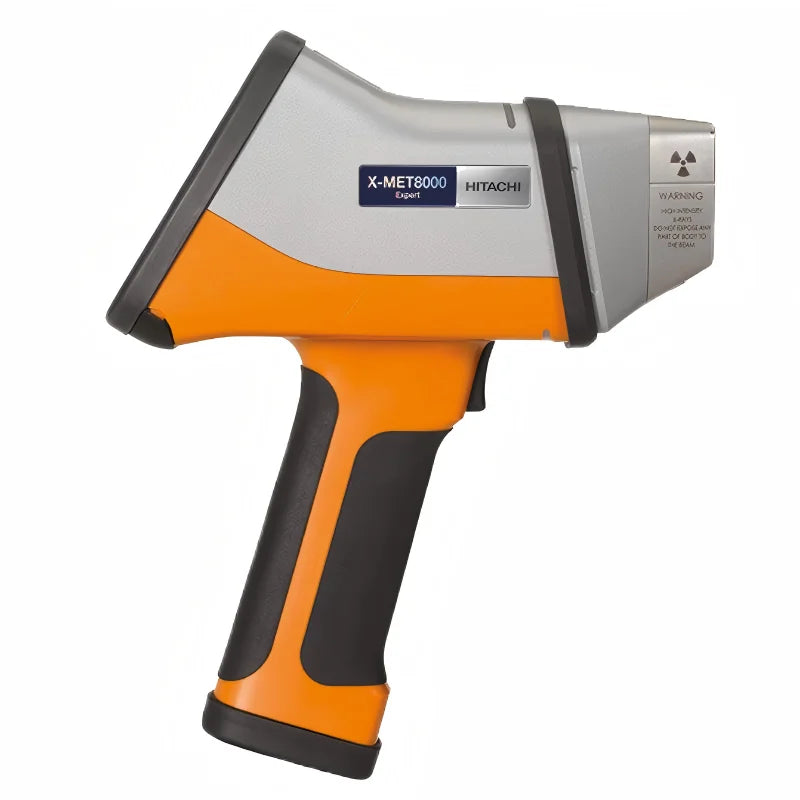

HITACHI X-MET8000 Handheld XRF Analyzers X-Ray Spectrometer Type

• Portable handheld XRF analyzer for non-destructive elemental analysis

•
  High-resolution Silicon Drift Detector (SDD) for fast and accurate results

•
  Analyzes up to 30 elements for alloy verification and material identification

•
  Rhodium (Rh) anode X-ray tube with up to 50 kV and 200 μA

•

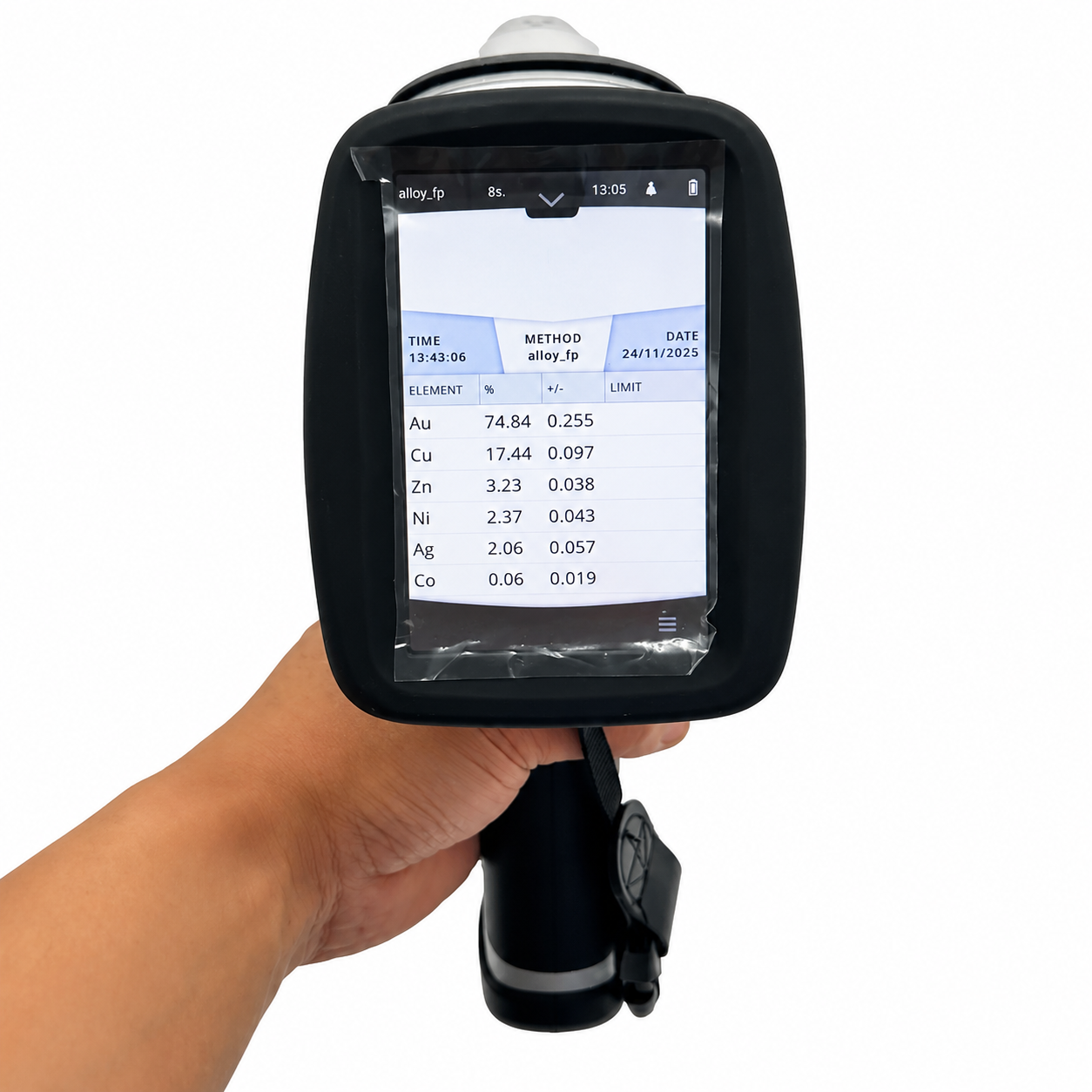

  Large 4.3-inch color touchscreen with intuitive user interface

•
  Built-in 16 GB memory capable of storing over 100,000 test results

•
  USB data export and PDF report generation

•
  Remote data management system

•
  Supports 12 operating languages

•
  Lightweight design (approximately 1.3 kg without battery)

•
  Rechargeable Li-ion battery with 10–12 hours of operation

•
  IP54-rated splash and dust resistance

•
  Built-in radiation safety features with password protection and automatic interlocks

•
  Ideal for PMI inspections, alloy verification, QA/QC, scrap recycling, metal fabrication, and industrial asset integrity programs.

Housing: Rugged industrial-grade polymer

Detector: Silicon Drift Detector (SDD)

Clean the analyzer window before each inspection.

Store the instrument in its protective carrying case during transport.

Recharge the battery regularly and avoid complete discharge during long-term storage.

Do not expose the analyzer to excessive moisture or temperatures outside its operating range (-10°C to +50°C).

Follow all radiation safety procedures and perform routine calibration for optimal performance.
