The TMTECK AWS Angle Beam Ultrasonic Probe is a professional ultrasonic transducer designed for weld inspection and non-destructive testing (NDT) in accordance with AWS standards. Operating at 2.25 MHz with interchangeable 45°, 60°, and 70° wedges, it delivers high sensitivity and reliable flaw detection for inspecting welds, structural steel, pressure vessels, pipelines, and industrial components in Oil & Gas, fabrication, and manufacturing environments.
Couldn't load pickup availability
Product features
Professional angle beam ultrasonic probe for weld inspection and NDT applications.
Operates at 2.25 MHz for reliable flaw detection.

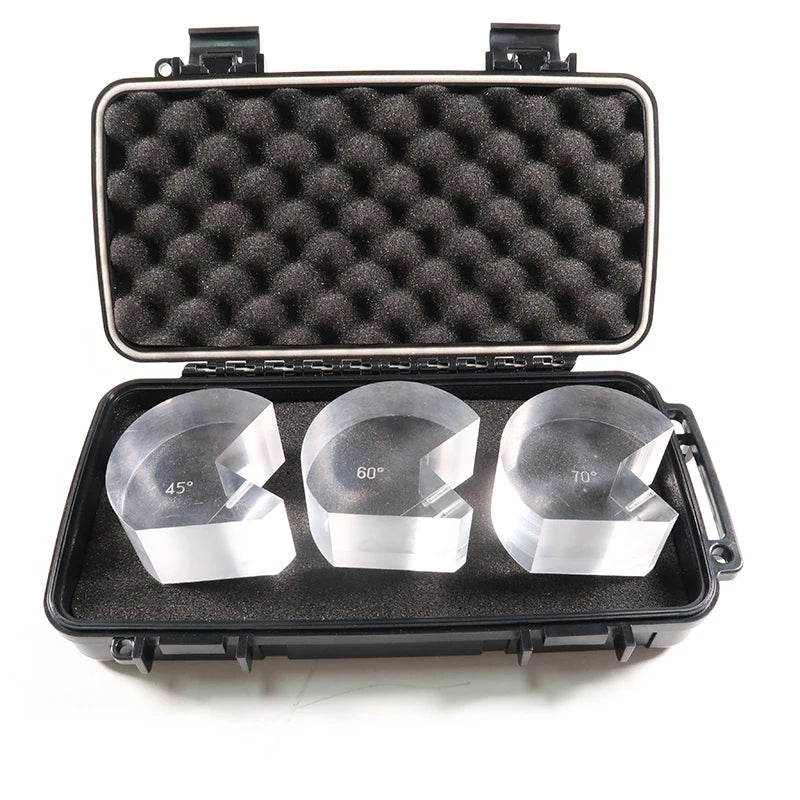

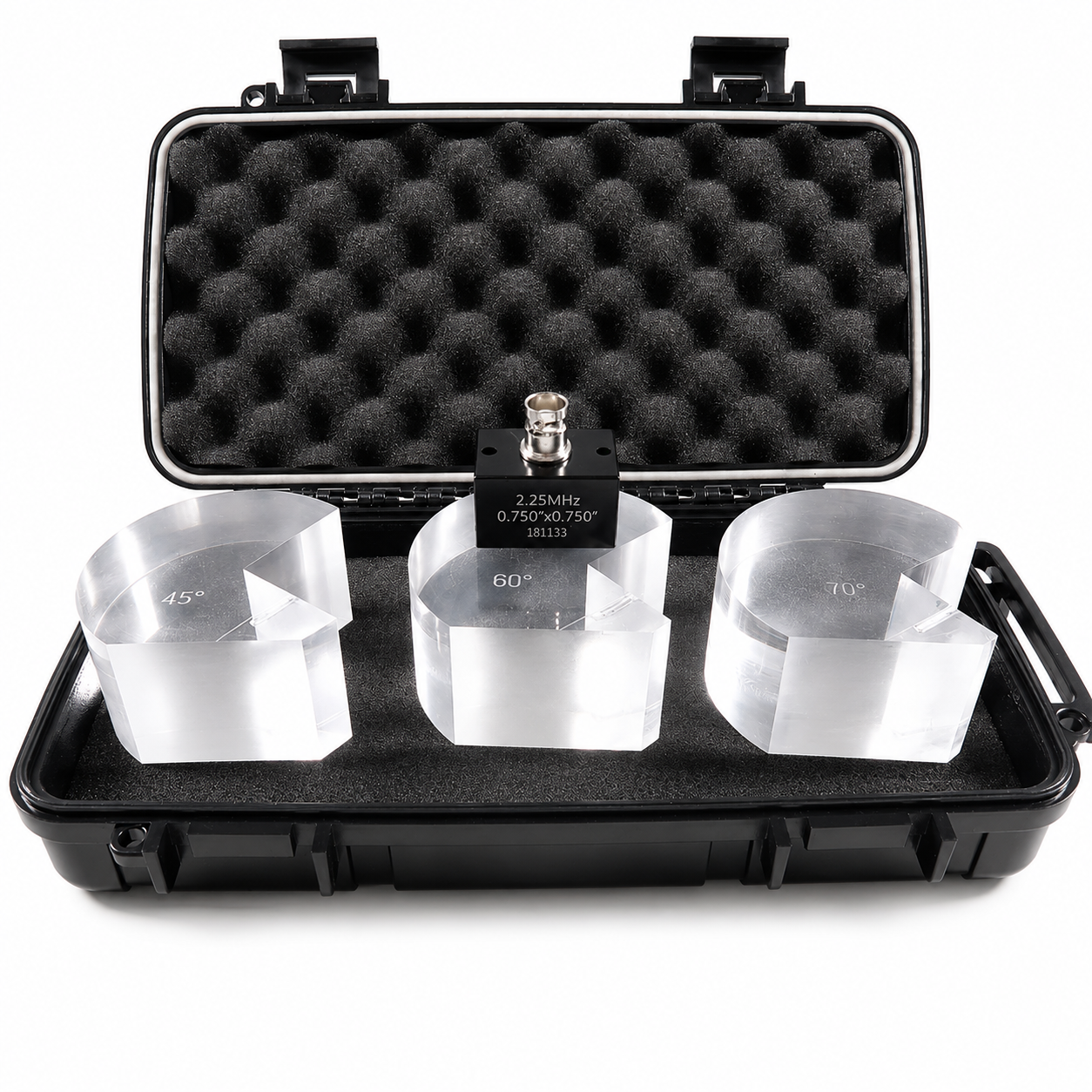

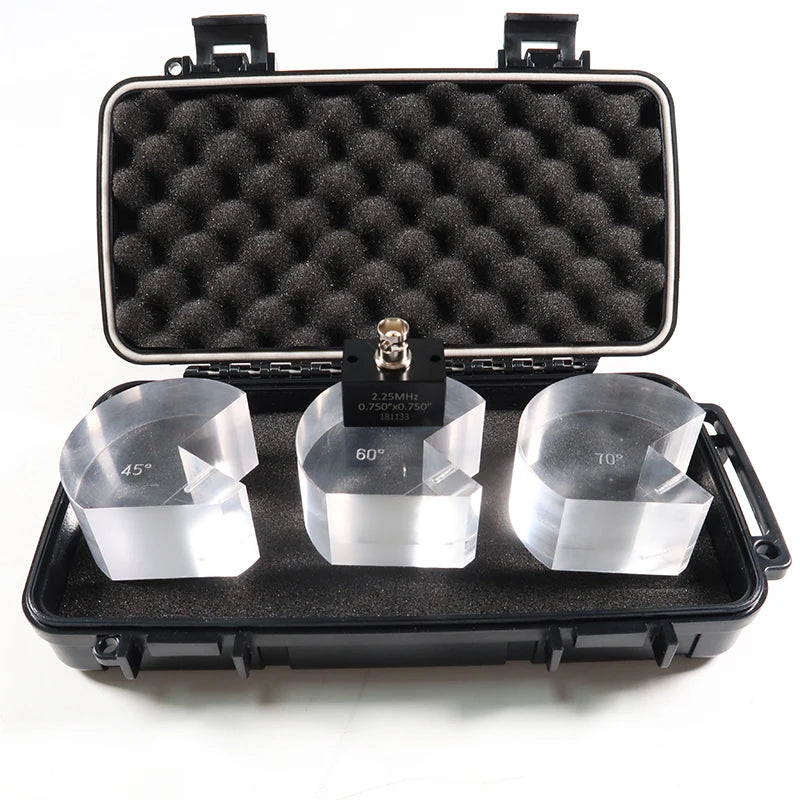

Compatible with 45°, 60°, and 70° interchangeable wedges.
Meets AWS inspection code requirements for angle beam testing.
Available in multiple crystal sizes:
0.625 × 0.625 in
0.625 × 0.75 in
0.75 × 0.75 in
High sensitivity for detecting internal weld discontinuities and defects.
Replaceable wedge design extends probe service life and reduces maintenance costs.
Standard top-mounted BNC connector for broad compatibility with ultrasonic flaw detectors.
Ideal for inspecting welds, pressure vessels, structural steel, pipelines, storage tanks, and fabricated components.
Suitable for Oil & Gas, petrochemical, power generation, construction, and industrial inspection.
